Brand: Siemens

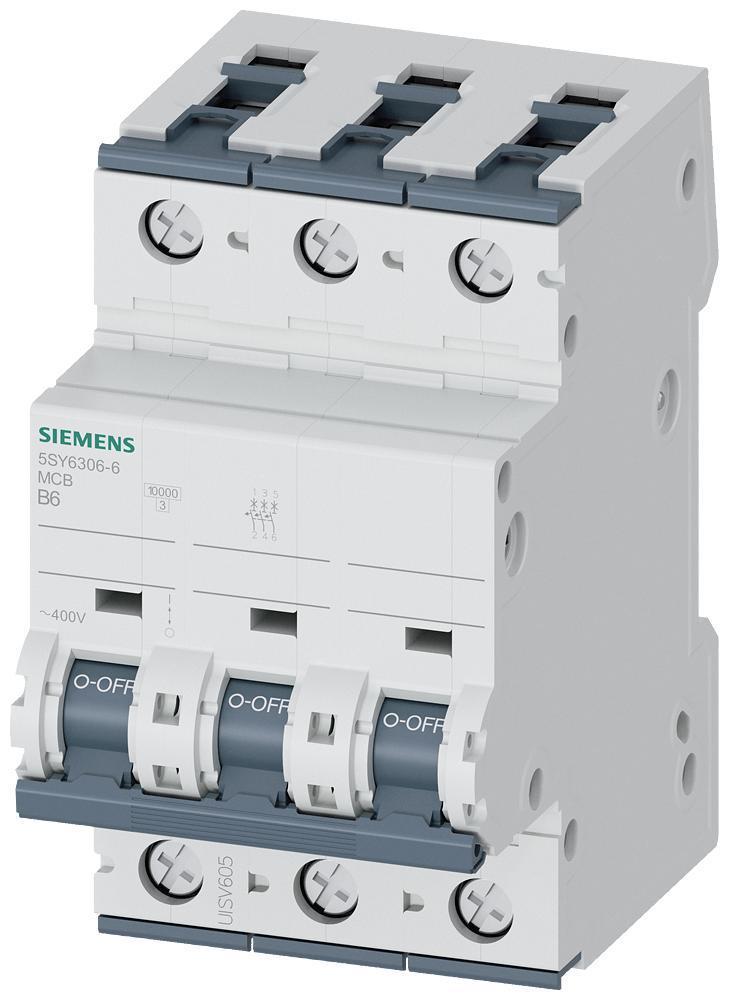

Siemens 5SY6306-6 Sentron Supplementary Protector
Image Disclaimers Message
Brand: Siemens
Siemens 5SY6306-6 Sentron Supplementary Protector
Brand: Siemens
Siemens 5SY6306-6 Sentron Supplementary Protector
Part #:5SY6306-6
SKU #: 2278157
$88.97/EA
Key Features
Part #:5SY6306-6
SKU #: 2278157
Brand: Siemens
Actuator Type: Handle
Amperage Rating: 6, 6 A
Dimensions: 90 mm H x 54 mm W x 76 mm D
Enclosure Type: IP20/IP40
Frame: 5SY6
$88.97/EA
- Clear and visible conductor connection in front of the rear busbar facilitates controls
- The conductor is easily inserted into the terminal thanks to the large and easily accessible wiring space
- Double terminal chambers permit accommodation of two wires of different cross-sections
- Quick and easy manual removal of miniature circuit breakers from the busbar assembly, for example if connections need to be changed
- Time saving replacement of parts as busbars no longer need to be freed from adjacent devices
- For the quick and easy mounting of auxiliary switches and fault signal contacts
- Captive metal brackets on the additional components ensure the quick and easy mounting of devices on the miniature circuit breakers without the need for tools
- Class B-trip
- Type B characteristic designed for European residential circuit protection
- This characteristic can also be used for protection of computers and electronic equipment
- 3 to 5 times magnetic trip point rating
- 1.13 to 1.45 thermal trip point protector rating
Specifications
Brand: Siemens
Actuator Type: Handle
Amperage Rating: 6, 6 A
Dimensions: 90 mm H x 54 mm W x 76 mm D
Enclosure Type: IP20/IP40
Frame: 5SY6
Frequency Rating: 50, 50 Hz
Interrupt Rating: 6, 6 kA
Number of Poles: 3
Temperature Rating (Degrees F): -25 to 55, -25 to 55 deg C
Trip Range: 40.68 to 52.2, 40.68 to 52.2 A
Trip Type: Thermal Magnetic, Thermal/Magnetic
Voltage Rating: 480, 480 VAC
Wire Size: 14 to 4, 14 to 4 AWG
Connection type: Line/Load/Screw
Country of origin: DE
Mounting type: DIN Rail
Manufacturer Name: Siemens
UNSPSC: 39121601
UPC: 00754554961248
Siemens 5SY6306-6 Sentron Supplementary Protector
Siemens Sentron Supplementary Protector, 480 VAC, 6 A, 50 Hz Frequency, 6 kA Interrupt, 5SY6 Frame, Thermal/Magnetic Trip, 40.68 to 52.2 A Trip, 3 Pole, Handle Actuator, Line/Load/Screw Connection, 14 to 4 AWG Wire, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 90 mm H x 54 mm W x 76 mm D Dimensions
Additional Description: SIEM-5SY6306-6 SUP PTOR 5SY6 3P 480V 6A 5K B-TRIP B-TRIP
Catalog Description: CIRCUIT BREAKER 400V 6KA, 3-POLE, B, 6A
Item FeaturesSupplementary Protection Applications
Item Features
Item FeaturesCSA C22.2 No. 235|IEC/EN 60898-1|IEC/EN 60947-2|CE Marked|CCC Marked|IMQ Certified|UL 1077
