Part Number # 5SY6316-6
SKU # 2266145
Image Disclaimers Message
5SY6316-6

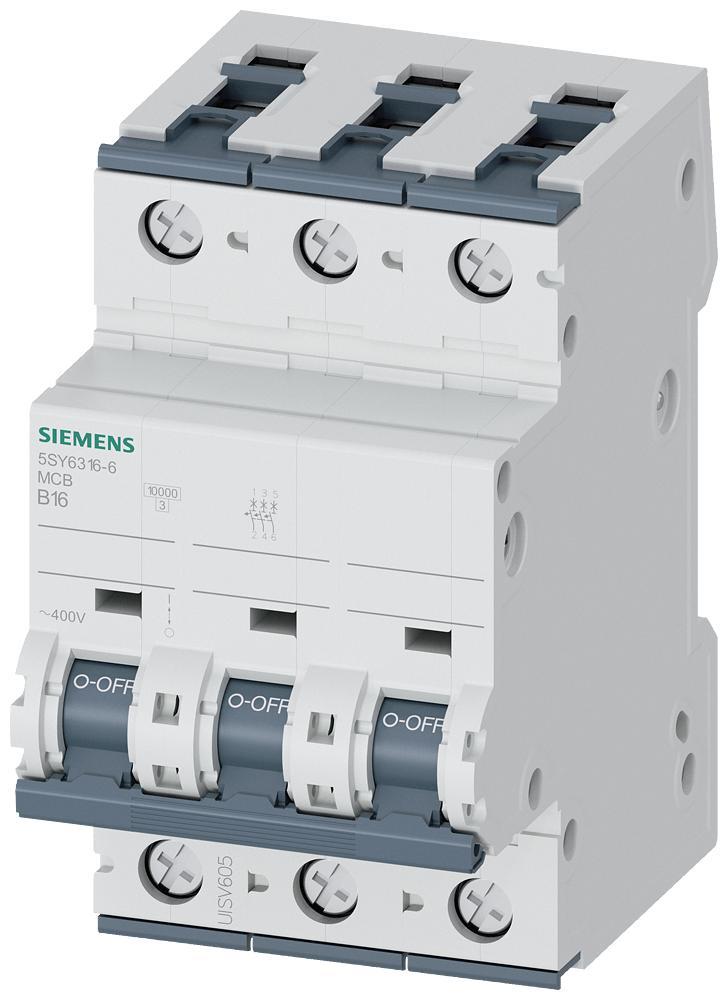

Siemens 5SY6316-6 Sentron Supplementary Protector
Part Number # 5SY6316-6
SKU # 2266145
$93.60 / Each
Typical price:$364.00 / Each
Siemens 5SY6316-6 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SY6316-6 |
| SKU #: | 2266145 |
| Amperage Rating: | 16, 16 A |
| Dimensions: | 90 mm H x 54 mm W x 70 mm D |
| Enclosure Type: | IP20 |
| Frame: | 5SY6 |
| Frequency Rating: | 50, 50 Hz |
| Interrupt Rating: | 6, 6 kA |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -25 to 45, -25 to 45 deg C |
| Trip Range: | 18.08 to 23.2, 18.08 to 23.2 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Miniature |
| Wire Size: | 14 to 4, 14 to 4 AWG |
| Connection type: | Line/Load Side/Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00040892620900 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$93.60 / Each
Typical price:$364.00 / Each
Quantity:
- Siemens Sentron Supplementary Protector, Miniature, 480 V AC, 16 A, 50 Hz Frequency, 6 kA Interrupt, 5SY6 Frame, Thermal Magnetic Trip, 18.08 to 23.2 A Trip, 3 Pole, Line/Load Side/Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 45 deg C, 90 mm H x 54 mm W x 70 mm D Dimensions
5SY6316-6 Application
Supplementary Protection Applications5SY6316-6 Item Features
- Excellent current limiting and selectivity characteristics
- Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2
- Combined terminals enable a simultaneous connection of busbars and feeder cables
- Uniform components that can be quickly mounted individually
- The handle locking device virtually prevents any unauthorized operation of the handle
- Rapid connection of the feeder cable in front of the busbar
- Identical terminals at both sides for an optional infeed from the top or the bottom
- Identical wire screw-on line and load side
- No tool required for mounting or dismounting
- Supports a fast and comfortable removal from the assembly
- Trip indication
- Type b characteristic designed for European residential circuit protection, this characteristic can also be used for protection of computers and electronic equipment
- 35 mm DIN-rail mounting
- 3 to 5 times magnetic trip point rating
- 1.13 to 1.45 thermal trip point protector rating
5SY6316-6 Standards
UL 1077 and CSA C22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2SKU #2266145Part Number #5SY6316-6UNSPSC39121601UPC00040892620900
