Part Number # 5SY6316-7
SKU # 2242667
5SY6316-7
Siemens 5SY6316-7 Sentron Supplementary Protector
Part Number # 5SY6316-7
SKU # 2242667
Siemens 5SY6316-7 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SY6316-7 |
| SKU #: | 2242667 |
| Trip Range: | 18.08 to 23.2, 18.08 to 23.2 A |
| UNSPSC: | 39121601 |
| UPC: | 00754554925035 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 5SY6316-7 Sentron Supplementary Protector
Brand: Siemens
Part Number: 5SY6316-7
Siemens Sentron Supplementary Protector, Miniature, 480 VAC, 16 A, 50 Hz Frequency, 6 kA Interrupt, 5SY6 Frame, Thermal/Magnetic Trip, 18.08 to 23.2 A Trip, 3 Pole, Line/Load Side/Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 45 deg C, 90 mm H x 54 mm W x 70 mm D Dimensions
Additional Description: SIEM-5SY6316-7 SUP PTOR 5SY6 3P 480V 16A 5K C-TRIP PROTECTOR,3P,16A,CURVE C
Catalog Description: SUPPLEMENTARY PROTECTOR,3P,16A,CURVE C 6KA, 3POLE, C, 16A, D=70MM MINIAT. CIRCUIT-BREAKER 4
5SY6316-7 Application
Supplementary Protection Applications5SY6316-7 Item Features
- Excellent current limiting and selectivity characteristics
- Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2
- Combined terminals enable a simultaneous connection of busbars and feeder cables
- Uniform components that can be quickly mounted individually
- The handle locking device virtually prevents any unauthorized operation of the handle
- Rapid connection of the feeder cable in front of the busbar
- Identical terminals at both sides for an optional infeed from the top or the bottom
- Identical wire screw-on line and load side
- No tool required for mounting or dismounting
- Supports a fast and comfortable removal from the assembly
- Trip indication
- Type C characteristic is for general device protection in control circuits
- 35 mm DIN-rail mounting
- 5 to 10 times magnetic trip point rating
- 1.13 to 1.45 thermal trip point protector rating
5SY6316-7 Standards
UL 1077, CSA 22.2 NO. 235, CE, EN 60 898, IEC/EN 60 947-2SKU #2242667Part Number #5SY6316-7UNSPSC39121601UPC00754554925035

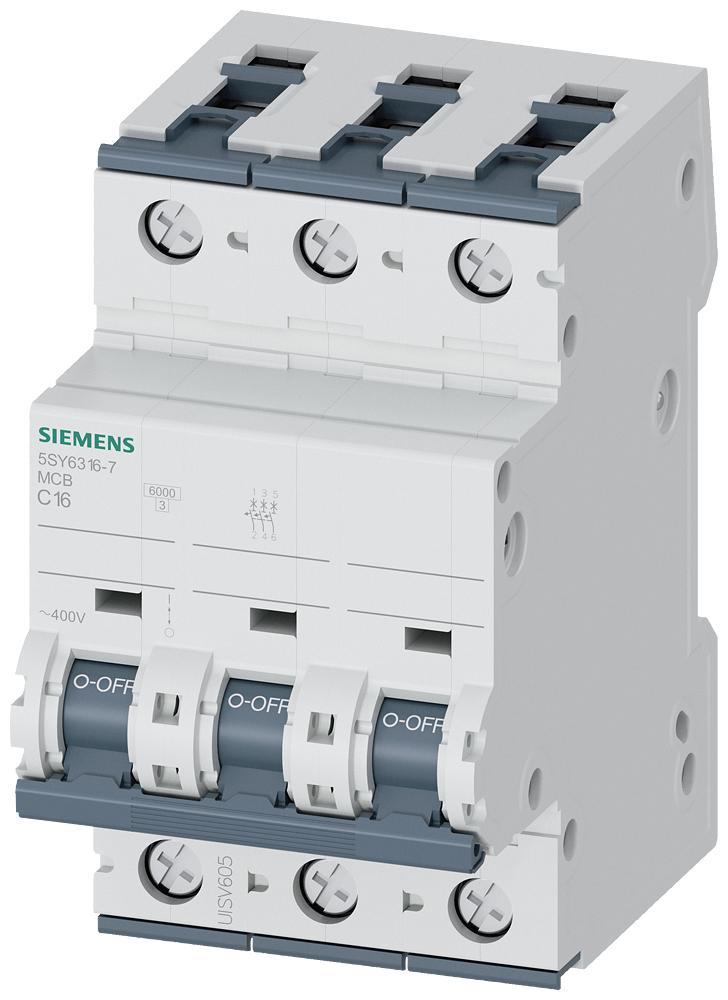

Image provided may only be a representation of final product and may include optional equipment
