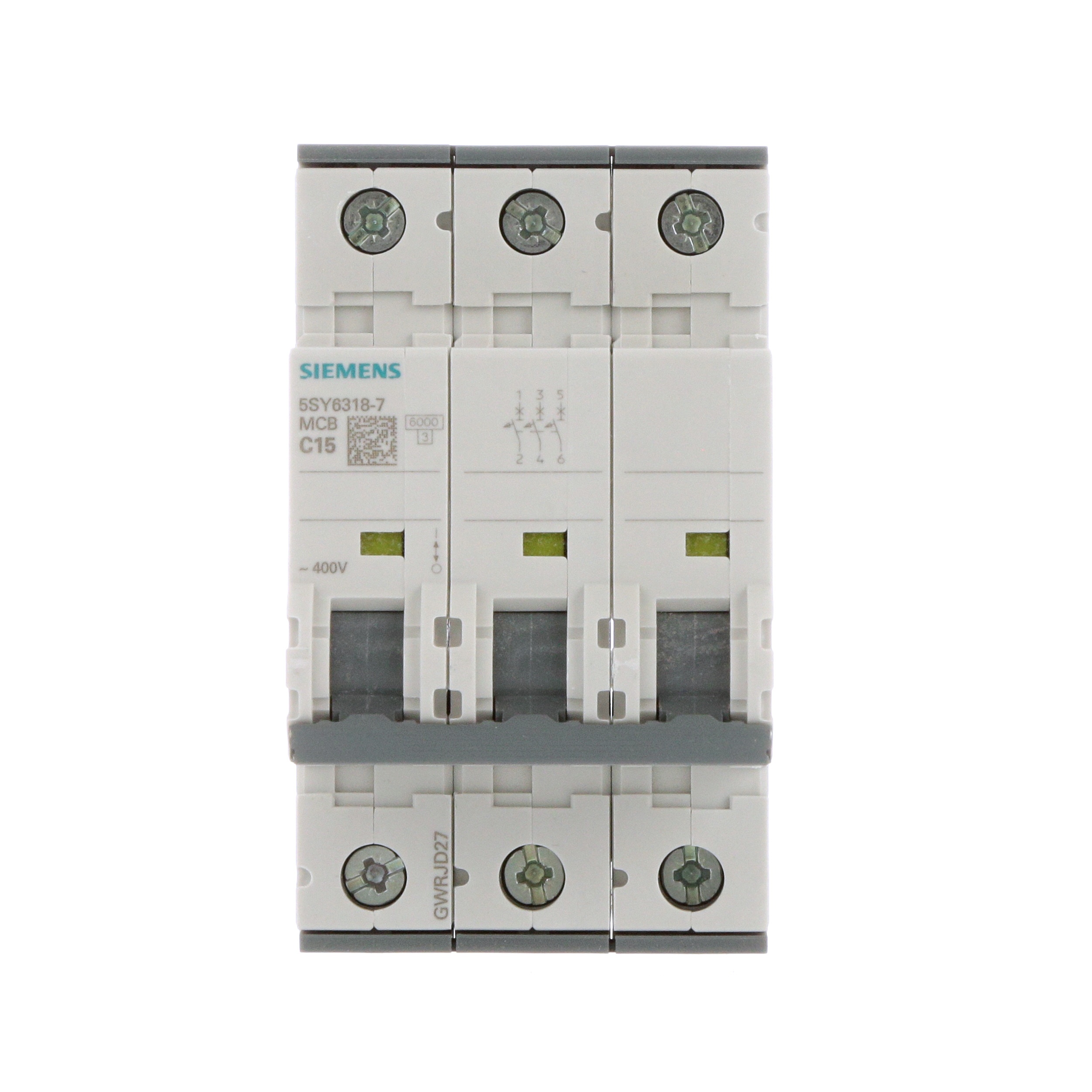

Siemens 5SY6318-7 Sentron Miniature Circuit Breaker
Image Disclaimers Message
Siemens 5SY6318-7 Sentron Miniature Circuit Breaker
Siemens 5SY6318-7 Sentron Miniature Circuit Breaker
Part #:5SY6318-7
SKU #: 2278151
Key Features
Part #:5SY6318-7
SKU #: 2278151
Brand: Siemens
Actuator Type: Handle
Amperage Rating: 15, 15 A
Dimensions: 90 mm H x 54 mm W x 76 mm D
Enclosure Type: IP20/IP40
Frequency Rating: 50/60, 50/60 Hz
- Clear and visible conductor connection in front of the rear busbar facilitates controls
- The conductor is easily inserted into the terminal thanks to the large and easily accessible wiring space
- Double terminal chambers permit accommodation of two wires of different cross-sections
- Quick and easy manual removal of miniature circuit breakers from the busbar assembly, for example if connections need to be changed
- Time-saving replacement of parts as busbars no longer need to be freed from adjacent devices
- For the quick and easy mounting of auxiliary switches and fault signal contacts
- Captive metal brackets on the additional components ensure the quick and easy mounting of devices on the miniature circuit breakers without the need for tools
- Class C trip
Siemens 5SY6318-7 Sentron Miniature Circuit Breaker
Sentron Miniature Circuit Breaker, Series: 5SY, 400 VAC, 15 A, 50/60 Hz Frequency, 5 kA Interrupt, Thermal/Magnetic Trip, 1.13 to 1.45 A Trip, 3 Pole, Handle Actuator, Screw Connection, 14 to 4 AWG Wire, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 90 mm H x 54 mm W x 76 mm D Dimensions
Additional Description: SIEM-5SY6318-7 SUP PTOR 5SY6 3P 480V 15A 5K C-TRIP PROTECTOR,3P,15A,CURVE C
Catalog Description: CIRCUIT BREAKER 400V 6KA, 3POLE, C, 15A
