Siemens 5SY6320-7 Sentron Supplementary Protector
Part Number # 5SY6320-7
SKU # 2242670
Siemens 5SY6320-7 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SY6320-7 |
| SKU #: | 2242670 |
| Dimensions: | 90 mm H x 54 mm W x 70 mm D |
| Enclosure Type: | IP20 |
| Frame: | 5SY6 |
| Frequency Rating: | 50 Hz |
| Interrupt Rating: | 6 kA |
| Temperature Rating (Degrees F): | -25 to 45 deg C |
| Trip Range: | 22.6 to 29 A |
| Trip Type: | Thermal Magnetic |
| Type: | Miniature |
| Connection type: | Line/Load Side/Screw |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00754554965963 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 5SY6320-7 Sentron Supplementary Protector
Brand: Siemens
Part Number: 5SY6320-7
Siemens Sentron Supplementary Protector, Miniature, 480 V AC, 20 A, 50 Hz Frequency, 6 kA Interrupt, 5SY6 Frame, Thermal Magnetic Trip, 22.6 to 29 A Trip, 3 Pole, Line/Load Side/Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 45 deg C, 90 mm H x 54 mm W x 70 mm D Dimensions
Additional Description: SIEM-5SY6320-7 SUP PTOR 5SY6 3P 480V 20A 5K C-TRIP C-TRIP
Catalog Description: CIRCUIT BREAKER 400V 6KA, 3-POLE, C, 20A, D=70MM
5SY6320-7 Application
Supplementary Protection Applications5SY6320-7 Item Features
- Excellent current limiting and selectivity characteristics
- Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2
- Combined terminals enable a simultaneous connection of busbars and feeder cables
- Uniform components that can be quickly mounted individually
- The handle locking device virtually prevents any unauthorized operation of the handle
- Rapid connection of the feeder cable in front of the busbar
- Identical terminals at both sides for an optional infeed from the top or the bottom
- Identical wire screw-on line and load side
- No tool required for mounting or dismounting
- Supports a fast and comfortable removal from the assembly
- Trip indication
- Type C characteristic is for general device protection in control circuits
- 35 mm DIN-rail mounting
- 5 to 10 times magnetic trip point rating
- 1.13 to 1.45 thermal trip point protector rating
- https://www.youtube.com/watch?v=NkSiw3nWIJg
5SY6320-7 Standards
UL 1077, CSA 22.2 NO. 235, CE, EN 60 898, IEC/EN 60 947-2SKU #2242670Part Number #5SY6320-7UNSPSC39121601UPC00754554965963

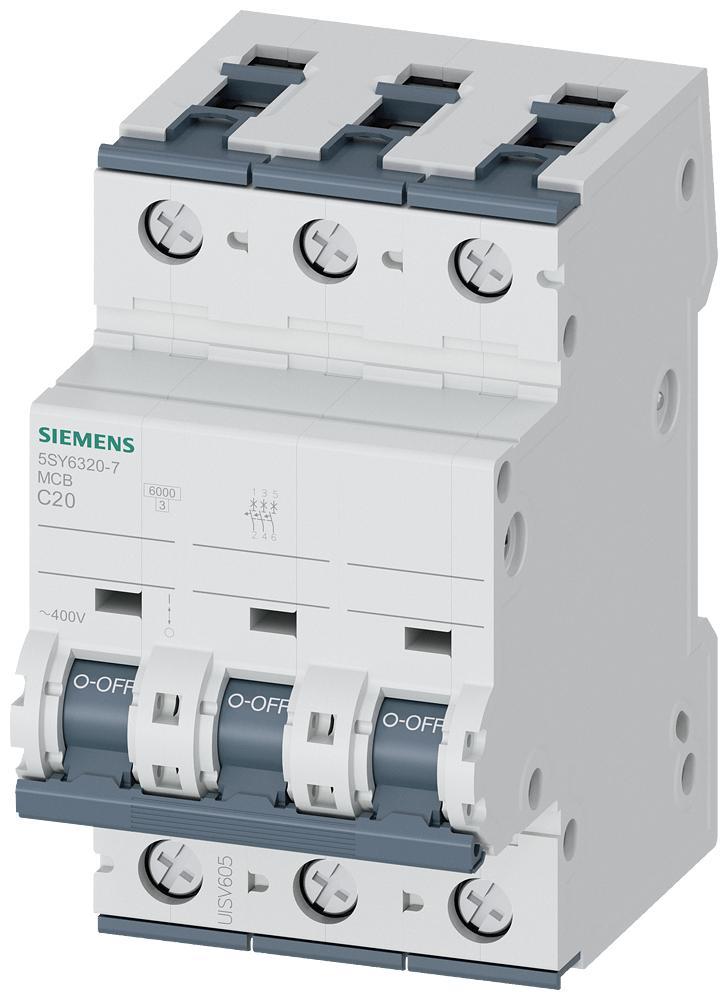

Image provided may only be a representation of final product and may include optional equipment
