Brand: Siemens
5SY8206-8

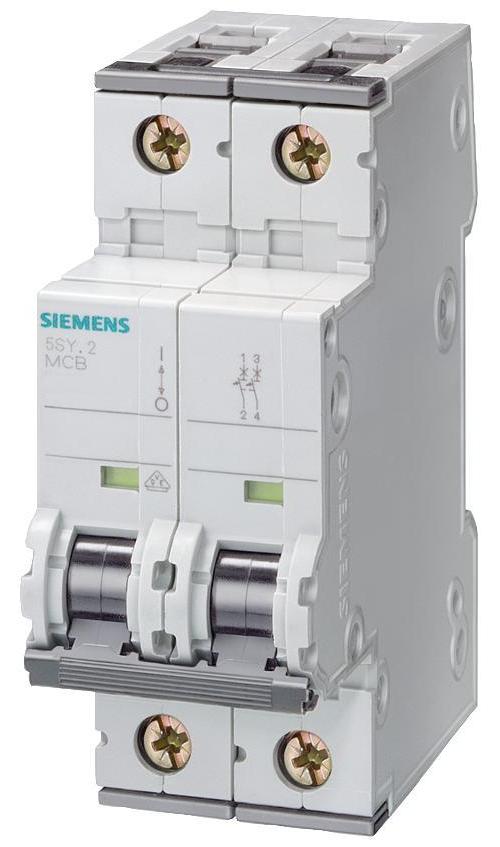

Siemens 5SY8206-8 Sentron Supplementary Protector
Part Number # 5SY8206-8
SKU # 2252664
$189.60 / Each
Typical price:$632.00 / Each
Siemens 5SY8206-8 Key Features
Brand: | Siemens |
---|---|
Part Number # : | 5SY8206-8 |
SKU #: | 2252664 |
Amperage Rating: | 6, 6 A |
Dimensions: | 90 mm H x 36 mm W x 76 mm D |
Enclosure Type: | IP20 |
Frame: | D |
Frequency Rating: | 50, 50 Hz |
Interrupt Rating: | 5, 5 kA |
Number of Poles: | 2 |
Temperature Rating (Degrees F): | -25 to 55, -25 to 55 deg C |
Trip Range: | 1.13 to 1.45 A Thermal/10 to 20 A Magnetic |
Trip Type: | Thermal Magnetic, Thermal/Magnetic |
Type: | Characteristic |
Wire Size: | 14 to 4, 14 to 4 AWG |
Connection type: | Screw |
Country of origin: | DE |
Mounting type: | DIN Rail |
Manufacturer Name: | Siemens |
UNSPSC: | 39121601 |
UPC: | 00754554937700 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$189.60 / Each
Typical price:$632.00 / Each
Quantity:
- Sentron Supplementary Protector, Characteristic, 480 V AC, 6 A, 50 Hz Frequency, 5 kA Interrupt, D Frame, Thermal Magnetic Trip, 1.13 to 1.45 A Thermal/10 to 20 A Magnetic Trip, 2 Pole, Screw Connection, 14 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 90 mm H x 36 mm W x 76 mm D Dimensions
5SY8206-8 Application
Supplementary Protection Applications5SY8206-8 Item Features
- Type D characteristic is designed for high inrush loads
- Identical wire screw connections on line and load side
- 70 mm D installation
- Quick-assembly system mounting
5SY8206-8 Standards
CE Certified|CSA 235|EN 60 898|IEC/EN 60 947-2|UL 1077SKU #2252664Part Number #5SY8206-8UNSPSC39121601UPC00754554937700
