Part Number # 5SY8306-7
SKU # 2457782
5SY8306-7
Siemens 5SY8306-7
Part Number # 5SY8306-7
SKU # 2457782
Siemens 5SY8306-7 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 5SY8306-7 |
| SKU #: | 2457782 |
| Dimensions: | 90 mm H x 54 mm W x 76 mm D |
| UNSPSC: | 39121601 |
| UPC: | 00754554941301 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 5SY8306-7
Brand: Siemens
Part Number: 5SY8306-7
Sentron™ Miniature Circuit Breaker, Series: 5SY, 400 VAC, 6 A, 50/60 Hz Frequency, 5 kA Interrupt, Thermal Magnetic Trip, 1.13 to 1.45 A Trip, 3 Pole, Handle Actuator, Screw Connection, 14 to 4 AWG Wire, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 90 mm H x 54 mm W x 76 mm D Dimensions
Additional Description: SIEM-5SY8306-7 (N) SUP PTOR 5SY8 3P 480V 6A 5K C-TRIP NON-CANCELABLE, NON-RETURNABLE
Catalog Description: CIRCUIT BREAKER 400V 25KA, 3POLE, C, 6A, D=70MM
5SY8306-7 Application
Supplementary Protection5SY8306-7 Item Features
- Clear and visible conductor connection in front of the rear busbar facilitates controls
- The conductor is easily inserted into the terminal thanks to the large and easily accessible wiring space
- Double terminal chambers permit accommodation of two wires of different cross-sections
- Quick and easy manual removal of miniature circuit breakers from the busbar assembly, for example if connections need to be changed
- Time-saving replacement of parts as busbars no longer need to be freed from adjacent devices
- For the quick and easy mounting of auxiliary switches and fault signal contacts
- Captive metal brackets on the additional components ensure the quick and easy mounting of devices on the miniature circuit breakers without the need for tools
- Class C trip
5SY8306-7 Standards
UL 1077SKU #2457782Part Number #5SY8306-7UNSPSC39121601UPC00754554941301

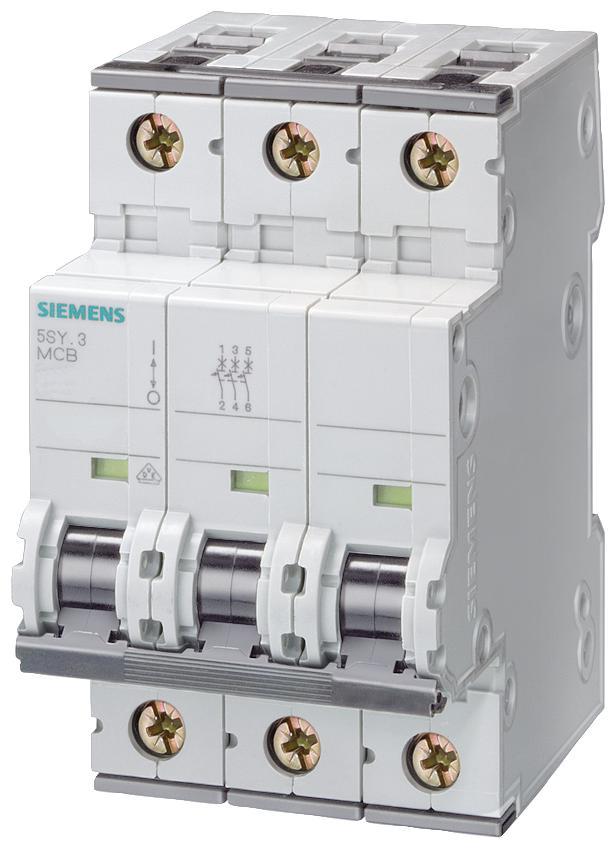

Image provided may only be a representation of final product and may include optional equipment
