Part Number # B270HHNAV
SKU # 2449957
B270HHNAV
Siemens B270HHNAV
Part Number # B270HHNAV
SKU # 2449957
Siemens B270HHNAV Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | B270HHNAV |
| SKU #: | 2449957 |
| Actuator Type: | Toggle |
| Amperage Rating: | 70 A |
| Dimensions: | 3 in L x 3 in W x 1 in H |
| Frame: | BL |
| Frequency Rating: | 60 Hz |
| Interrupt Rating: | 65 kA |
| Number of Poles: | 2 |
| Phase: | 1 |
| Temperature Rating (Degrees F): | 40 deg C |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Low Voltage |
| Wire Size: | 8 to 4 AWG, 8 to 2 AWG |
| Connection type: | Bolt-On |
| Country of origin: | MX |
| Mounting type: | Panel |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00040892061291 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens B270HHNAV
Brand: Siemens
Part Number: B270HHNAV
Siemens Molded Case Circuit Breaker, Low Voltage, 120 VAC, 70 A, 60 Hz Frequency, 65 kA Interrupt, BL Frame, Thermal Magnetic Trip, 2 Pole, 1 ph, Toggle Actuator, Bolt-On Connection, 8 to 4 AWG, 8 to 2 AWG Wire, Panel Mounting, 40 deg C, 3 in L x 3 in W x 1 in H Dimensions
Additional Description: SIEM-B270HHNAV NAVAL BREAKER 70A 2P 120V 65K BL
Catalog Description: Siemens Low Voltage Molded Case Circuit Breakers Panelboard Mounting 240V Circuit Breakers - Type BL, 2-Pole, 120/240VAC are Circuit Protection Molded Case Circuit Breakers. Type BL Application Electrical Distribution Standard UL 489 Voltage Rating 120V Amperage Rating 70A Trip Range Thermal Magnetic Interrupt Rating 65 AIC Number Of Poles 2P Connection BOLT-ON Length 3 Width 3 Height 1
B270HHNAV Application
Electrical Distribution ApplicationsB270HHNAV Item Features
- Sense when an over current occurs
- Measure the amount of over current
- Act by tripping quickly enough to prevent damage to itself and associated conductors
- Mounting with INSTA-WIRE
- 8 to 4 AWG copper, 8 to 2 AWG aluminum
- Naval breaker
B270HHNAV Standards
ULLISTED/CSA/NOMCERTIFIEDSKU #2449957Part Number #B270HHNAVUNSPSC39121601UPC00040892061291

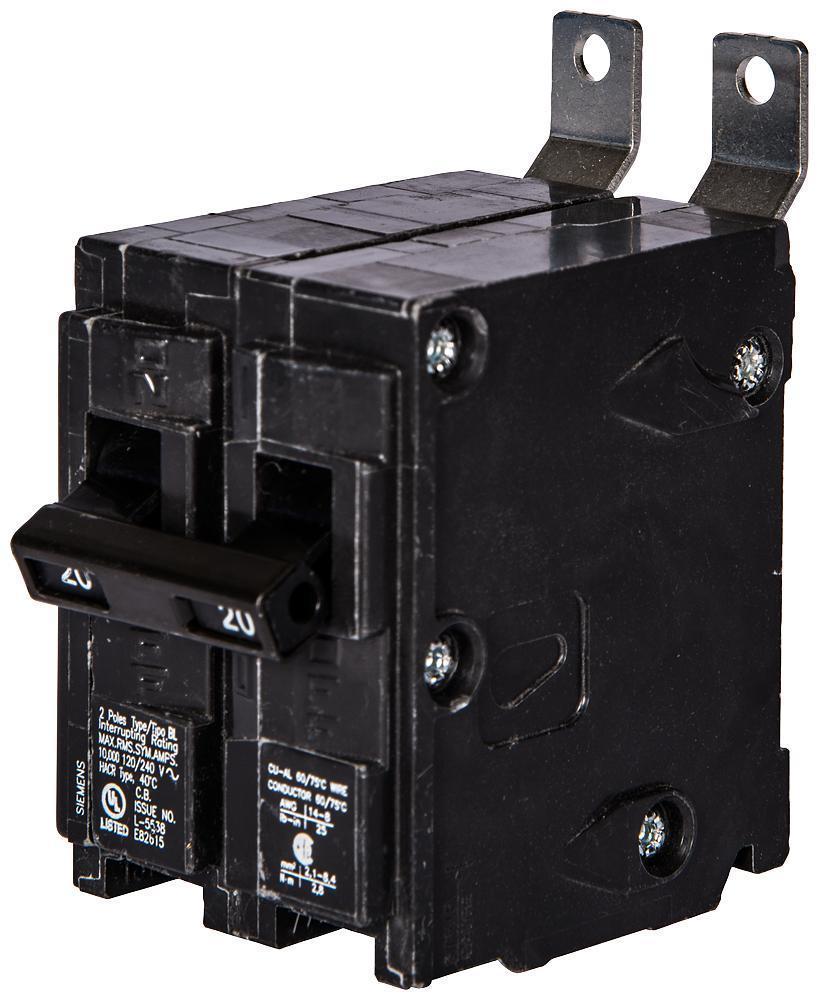

Image provided may only be a representation of final product and may include optional equipment
