Part Number # B315HHNAV
SKU # 2449969
B315HHNAV
Siemens B315HHNAV
Part Number # B315HHNAV
SKU # 2449969
Siemens B315HHNAV Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | B315HHNAV |
| SKU #: | 2449969 |
| Actuator Type: | Toggle |
| Amperage Rating: | 15 A |
| Dimensions: | 3 in L x 3 in W x 1 in H |
| Frame: | BL |
| Frequency Rating: | 60 Hz |
| Interrupt Rating: | 65 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 40 deg C |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Low Voltage |
| Wire Size: | 14 to 10 AWG, 12 to 10 AWG |
| Connection type: | Bolt-On |
| Country of origin: | MX |
| Mounting type: | Panel |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00040892061437 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens B315HHNAV
Brand: Siemens
Part Number: B315HHNAV
Siemens Molded Case Circuit Breaker, Low Voltage, 120 VAC, 15 A, 60 Hz Frequency, 65 kA Interrupt, BL Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Toggle Actuator, Bolt-On Connection, 14 to 10 AWG, 12 to 10 AWG Wire, Panel Mounting, 40 deg C, 3 in L x 3 in W x 1 in H Dimensions
Additional Description: SIEM-B315HHNAV (N) NAVAL BREAKER 15A 3P 120V 65K BL NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Siemens Low Voltage Molded Case Circuit Breakers Panelboard Mounting 240V Circuit Breakers - Type BL, 3-Pole, 240VAC are Circuit Protection Molded Case CircuitBreakers. Type BL Application Electrical Distribution Standard UL 489 Voltage Rating 120V Amperage Rating 15A Trip Range Thermal Magnetic Interrupt Rating 65 AIC Number Of Poles 3P Connection BOLT-ON Length 3 Width 3 Height 1
B315HHNAV Application
Electrical Distribution ApplicationsB315HHNAV Item Features
- Sense when an over current occurs
- Measure the amount of over current
- Act by tripping quickly enough to prevent damage to itself and associated conductors
- Mounting with INSTA-WIRE
- Naval breaker
B315HHNAV Standards
ULLISTED/CSA/NOMCERTIFIEDSKU #2449969Part Number #B315HHNAVUNSPSC39121601UPC00040892061437

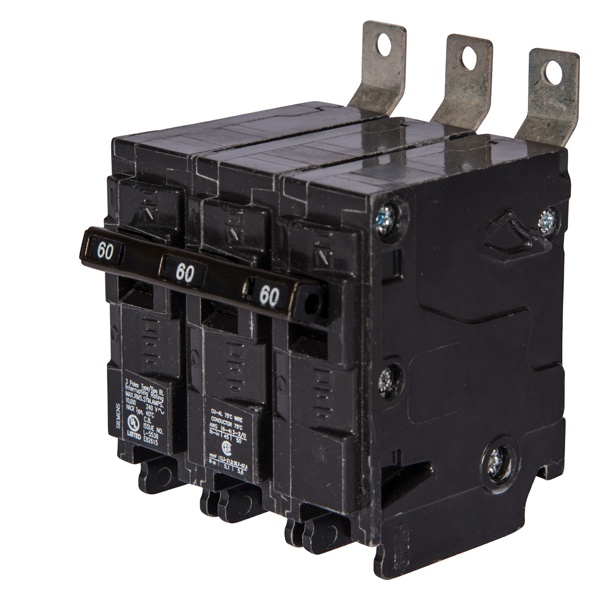

Image provided may only be a representation of final product and may include optional equipment
