Brand: Siemens

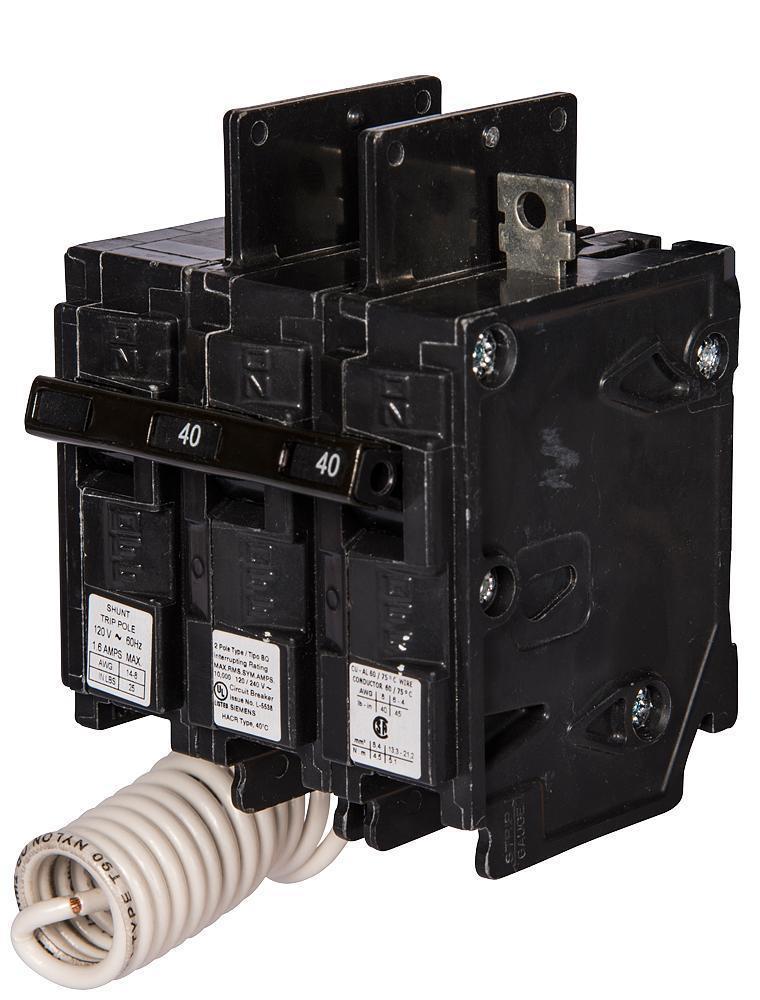

Siemens BQ2B02000S01 Molded Case Circuit Breaker
Image Disclaimers Message
Brand: Siemens
Siemens BQ2B02000S01 Molded Case Circuit Breaker
Brand: Siemens
Siemens BQ2B02000S01 Molded Case Circuit Breaker
Part #:BQ2B02000S01
SKU #: 2266610
$419.53/EA
Key Features
Part #:BQ2B02000S01
SKU #: 2266610
Brand: Siemens
Actuator Type: Toggle
Amperage Rating: 20, 20 A
Dimensions: 5 in L x 4 in W x 4 in H
Interrupt Rating: 10, 10 kA
Number of Poles: 2
$419.53/EA
- Sense when an over current occurs
- Measure the amount of over current
- Act by tripping quickly enough to prevent damage to itself and associated conductors
- Lug in/lug out with insta-wire
- 14 to 10 AWG copper, 12 to 10 AWG aluminum wire
- 120 VAC shunt trip
Specifications
Brand: Siemens
Actuator Type: Toggle
Amperage Rating: 20, 20 A
Dimensions: 5 in L x 4 in W x 4 in H
Interrupt Rating: 10, 10 kA
Number of Poles: 2
Phase: 1
Temperature Rating (Degrees F): 40, 40 deg C
Trip Type: Shunt/Thermal Magnetic
Type: Type BQ Low Voltage
Voltage Rating: 120/240, 120/240 VAC
Wire Size: 14 to 10 AWG, 12 to 10 AWG
Color: Black
Connection type: Bolt-On/Lug-In/Lug-Out
Country of origin: MX
Mounting type: Panel
Manufacturer Name: Siemens
UNSPSC: 39121601
UPC: 00783643237728
Item FeaturesElectrical Distribution and General Purpose Applications
Item Features
Item FeaturesUL 489|HACR Rated
