Part Number # BQ3B05000S01
SKU # 2359001
BQ3B05000S01

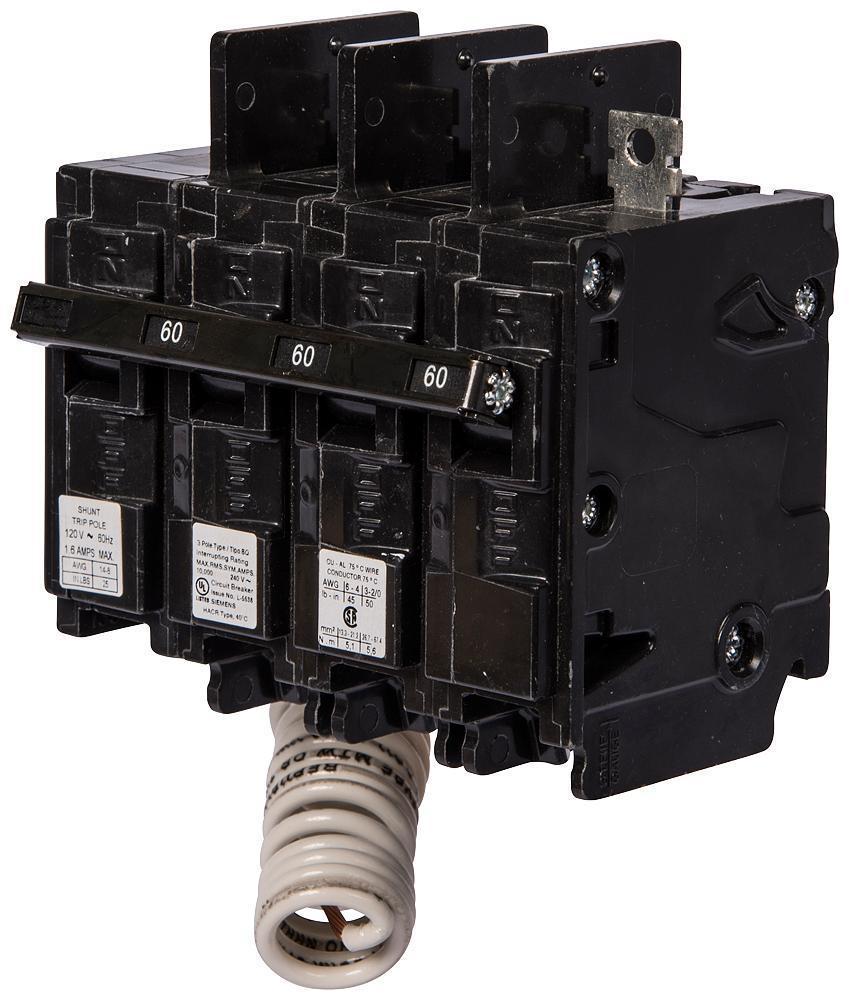

Siemens BQ3B05000S01 Molded Case Circuit Breaker
Part Number # BQ3B05000S01
SKU # 2359001
Siemens BQ3B05000S01 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | BQ3B05000S01 |
| SKU #: | 2359001 |
| Actuator Type: | Handle |
| Amperage Rating: | 50, 50 A |
| Dimensions: | 6 in L x 4 in W x 4 in H |
| Interrupt Rating: | 10, 10 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Trip Type: | Shunt/Thermal Magnetic, Thermal Magnetic |
| Type: | Type BQ Low Voltage |
| Wire Size: | 8 to 6 AWG, 8 to 4 AWG |
| Connection type: | Bolt-On/Lug-In/Lug-Out |
| Country of origin: | MX |
| Mounting type: | Panel |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00783643237865 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens BQ3B05000S01 Molded Case Circuit Breaker
Brand: Siemens
Part Number: BQ3B05000S01
Siemens Molded Case Circuit Breaker, Type BQ Low Voltage, 240 VAC, 50 A, 10 kA Interrupt, Shunt/Thermal Magnetic Trip, 3 Pole, 3 ph, Handle Actuator, Bolt-On/Lug-In/Lug-Out Connection, 8 to 6 AWG, 8 to 4 AWG Wire, Panel Mounting, 40 deg C, 6 in L x 4 in W x 4 in H Dimensions, Black
Additional Description: SIEM-BQ3B05000S01 (N) BRKR BQ 3P 240V 50A 10K 120ST NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Siemens Low Voltage Molded Case Circuit Breakers General Purpose MCCBs are Circuit Protection Molded Case Circuit Breakers. 3-Pole Common-Trip circuit breaker type BQ. Rated 240V (050A) (AIR 10 kA). Special features 120VAC Shunt Trip. NoteLoad side lugs are included.
BQ3B05000S01 Application
Electrical Distribution and General Purpose ApplicationsBQ3B05000S01 Item Features
- Sense when an over current occurs
- Measure the amount of over current
- Act by tripping quickly enough to prevent damage to itself and associated conductors
- Lug in/lug out with insta-wire
- 8 to 6 AWG copper, 8 to 4 AWG aluminum wire
- 120 VAC shunt trip
BQ3B05000S01 Standards
ULLISTED/CSA/NOMCERTIFIEDSKU #2359001Part Number #BQ3B05000S01UNSPSC39121601UPC00783643237865
Image provided may only be a representation of final product and may include optional equipment
