Part Number # BQ3B070L
SKU # 2454027
BQ3B070L

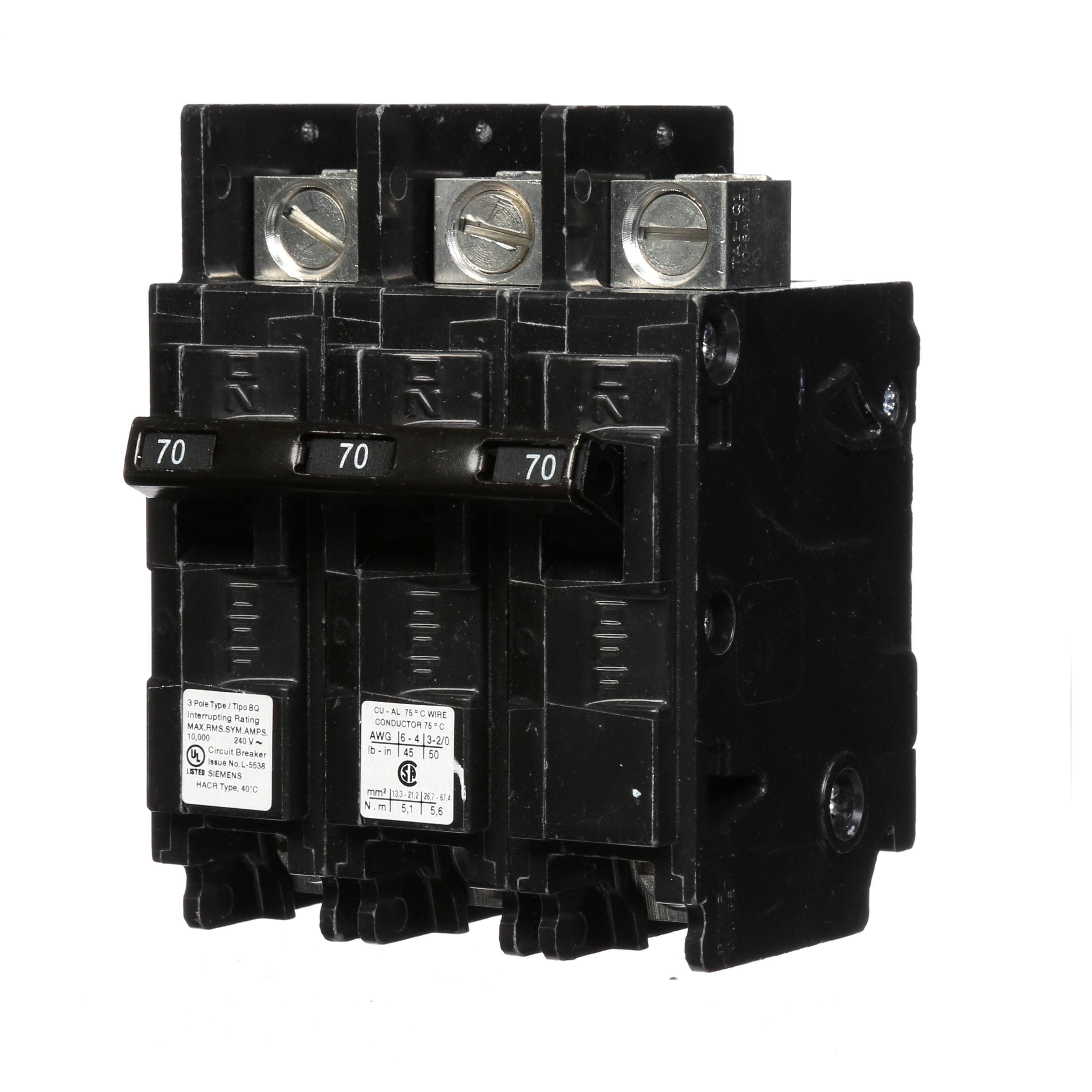

Siemens BQ3B070L
Part Number # BQ3B070L
SKU # 2454027
Siemens BQ3B070L Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | BQ3B070L |
| SKU #: | 2454027 |
| Actuator Type: | Handle |
| Amperage Rating: | 70 A |
| Dimensions: | 3 in L x 3 in W x 4 in H |
| Interrupt Rating: | 10 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 40 deg C |
| Trip Type: | Thermal Magnetic |
| Type: | Type BQ Low Voltage |
| Wire Size: | 8 to 1 AWG, 6 to 1/0 AWG |
| Connection type: | Bolt-On/Lug-In/Lug-Out |
| Country of origin: | MX |
| Mounting type: | Panel |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00783643237308 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens BQ3B070L
Brand: Siemens
Part Number: BQ3B070L
Siemens Molded Case Circuit Breaker, Type BQ Low Voltage, 240 VAC, 70 A, 10 kA Interrupt, Thermal Magnetic Trip, 3 Pole, 3 ph, Handle Actuator, Bolt-On/Lug-In/Lug-Out Connection, 8 to 1 AWG, 6 to 1/0 AWG Wire, Panel Mounting, 40 deg C, 3 in L x 3 in W x 4 in H Dimensions, Black
Additional Description: SIEM-BQ3B070L (N) BRKR BQ 3P 240V 70A 10K LUG NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Siemens Low Voltage Molded Case Circuit Breakers General Purpose MCCBs are Circuit Protection Molded Case Circuit Breakers. 3-Pole Common-Trip circuit breaker type BQ. Rated 240V (070A) (AIR 10 kA). Special features line side lugs included. Note Load side lugs are included.
BQ3B070L Application
Electrical Distribution and General Purpose ApplicationsBQ3B070L Item Features
- Sense when an over current occurs
- Measure the amount of over current
- Act by tripping quickly enough to prevent damage to itself and associated conductors
- Lug in/lug out with insta-wire
- 8 to 1 AWG copper, 6 to 1/0 AWG aluminum line, 8 to 4 AWG copper, 8 to 2 AWG aluminum load wire
- 24 VAC auxiliary switch
BQ3B070L Standards
UL 489SKU #2454027Part Number #BQ3B070LUNSPSC39121601UPC00783643237308
Image provided may only be a representation of final product and may include optional equipment
