Part Number # BQ3B080L
SKU # 2454029
Image Disclaimers Message
BQ3B080L

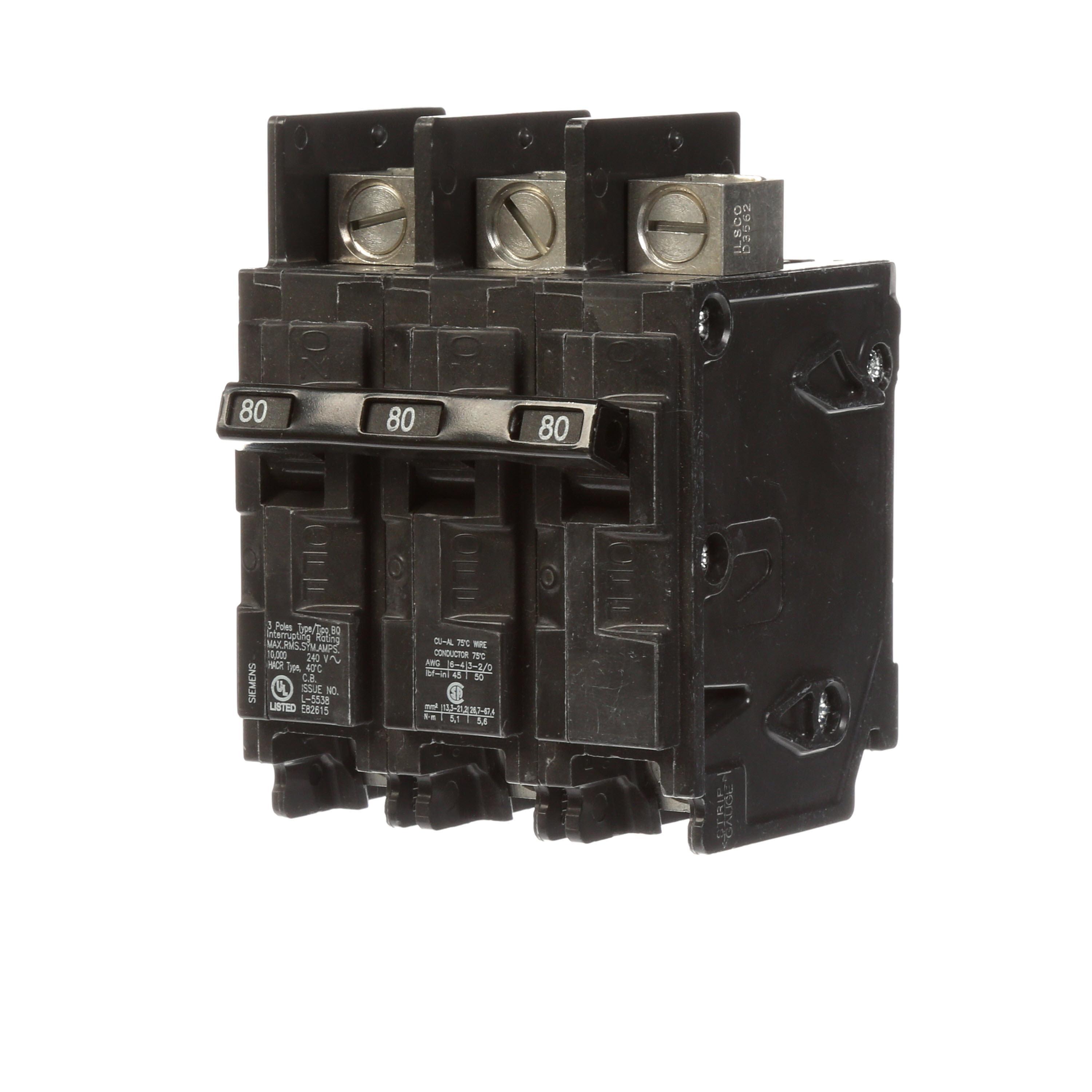

Siemens BQ3B080L
Part Number # BQ3B080L
SKU # 2454029
$694.47 / Each
Typical price:$1023.00 / Each
Siemens BQ3B080L Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | BQ3B080L |
| SKU #: | 2454029 |
| Actuator Type: | Handle |
| Amperage Rating: | 80 A |
| Dimensions: | 3 in L x 3 in W x 4 in H |
| Interrupt Rating: | 10 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 40 deg C |
| Trip Type: | Thermal Magnetic |
| Type: | Type BQ Low Voltage |
| Wire Size: | 8 to 1 AWG, 6 to 1/0 AWG |
| Color: | Black |
| Connection type: | Bolt-On/Lug-In/Lug-Out |
| Country of origin: | MX |
| Mounting type: | Panel |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00783643240896 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$694.47 / Each
Typical price:$1023.00 / Each
Quantity:
- Siemens Molded Case Circuit Breaker, Type BQ Low Voltage, 240 V AC, 80 A, 10 kA Interrupt, Thermal Magnetic Trip, 3 Pole, 3 ph, Handle Actuator, Bolt-On/Lug-In/Lug-Out Connection, 8 to 1 AWG, 6 to 1/0 AWG Wire, Panel Mounting, 40 deg C, 3 in L x 3 in W x 4 in H Dimensions, Black
BQ3B080L Application
Electrical Distribution and General Purpose ApplicationsBQ3B080L Item Features
- Sense when an over current occurs
- Measure the amount of over current
- Act by tripping quickly enough to prevent damage to itself and associated conductors
- Lug in/lug out with insta-wire
- 8 to 1 AWG copper, 6 to 1/0 AWG aluminum line, 4 to 1/0 AWG copper, 2 to 1/0 AWG aluminum load wire
BQ3B080L Standards
ULLISTED/CSA/NOMCERTIFIEDSKU #2454029Part Number #BQ3B080LUNSPSC39121601UPC00783643240896
