Part Number # CED63B070
SKU # 2413483
CED63B070
Siemens CED63B070 Sentron Molded Case Circuit Breaker
Part Number # CED63B070
SKU # 2413483
Siemens CED63B070 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | CED63B070 |
| SKU #: | 2413483 |
| Amperage Rating: | 70 A |
| Dimensions: | 3 in L x 10 in W x 6 in H |
| Frame: | ED |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 100 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 40 deg C |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Type CED6 Current Limiting |
| Wire Size: | 10 to 1/0 AWG |
| Connection type: | Load Lug |
| Country of origin: | MX |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00783643210721 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens CED63B070 Sentron Molded Case Circuit Breaker
Brand: Siemens
Part Number: CED63B070
Siemens Sentron™ Molded Case Circuit Breaker, Type CED6 Current Limiting, 600 VAC/500 VDC, 70 A, 50/60 Hz Frequency, 100 kA Interrupt, ED Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Load Lug Connection, 10 to 1/0 AWG Wire, 40 deg C, 3 in L x 10 in W x 6 in H Dimensions
Additional Description: SIEM-CED63B070 BRKR CED 3P 600V 70A
Catalog Description: SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH FUSELESS CURRENT LIMITING BREAKING CAPACITY. 70A 3-POLE (100KAIC AT 600V) (200KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (LN1E100) WIRE RANGE 10 - 1/0AWG(CU/AL). DIMENSIONS (W x H x D) IN 3.00 x 9.6 x 3.92.
CED63B070 Application
Standard 40C Breaker ApplicationsCED63B070 Item Features
- Field installable external accessories
- Series connected short circuit ratings
CED63B070 Standards
HACRSKU #2413483Part Number #CED63B070UNSPSC39121601UPC00783643210721

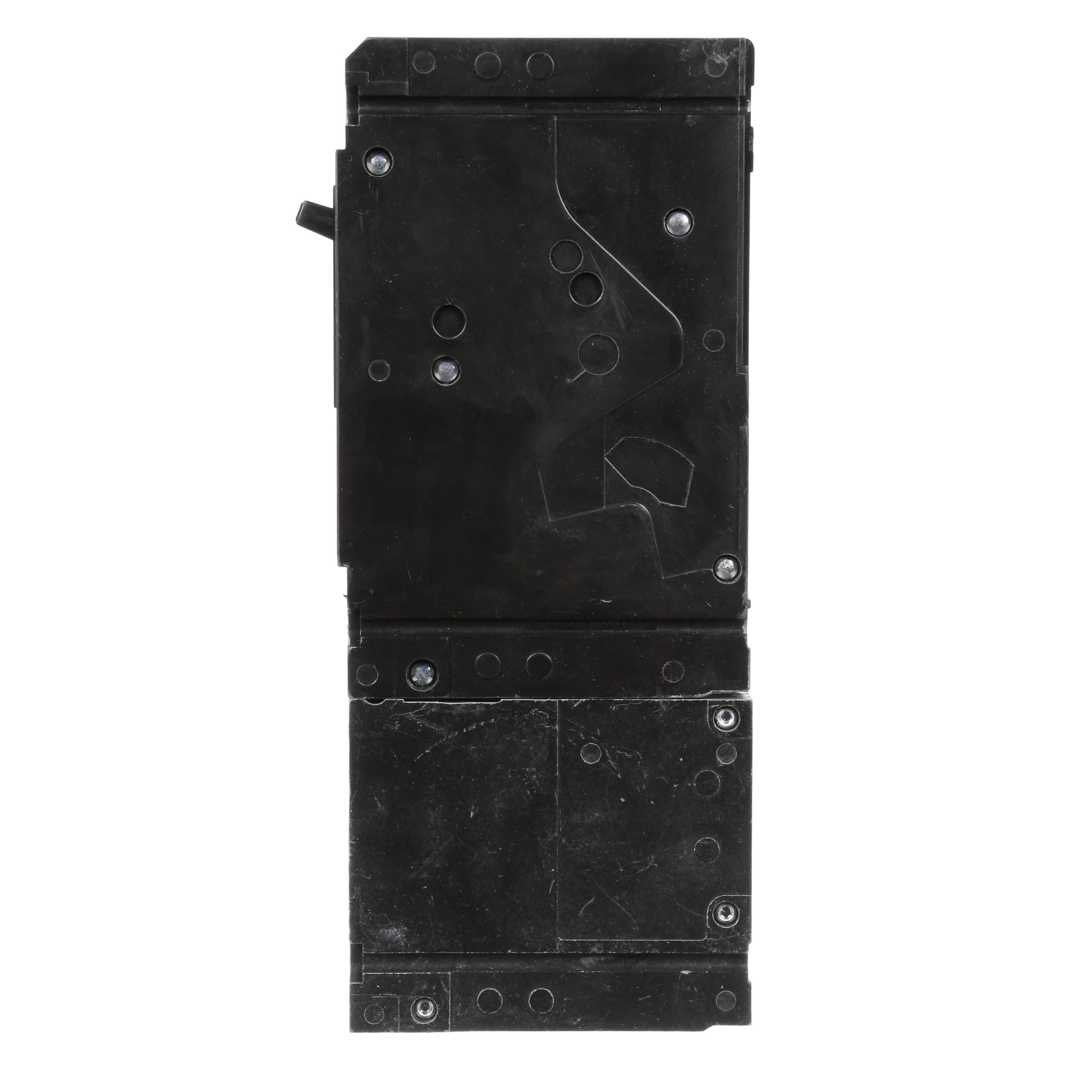

Image provided may only be a representation of final product and may include optional equipment
