Part Number # CFD63B250
SKU # 2350508
Image provided may only be a representation of
final product and may include optional equipment
CFD63B250

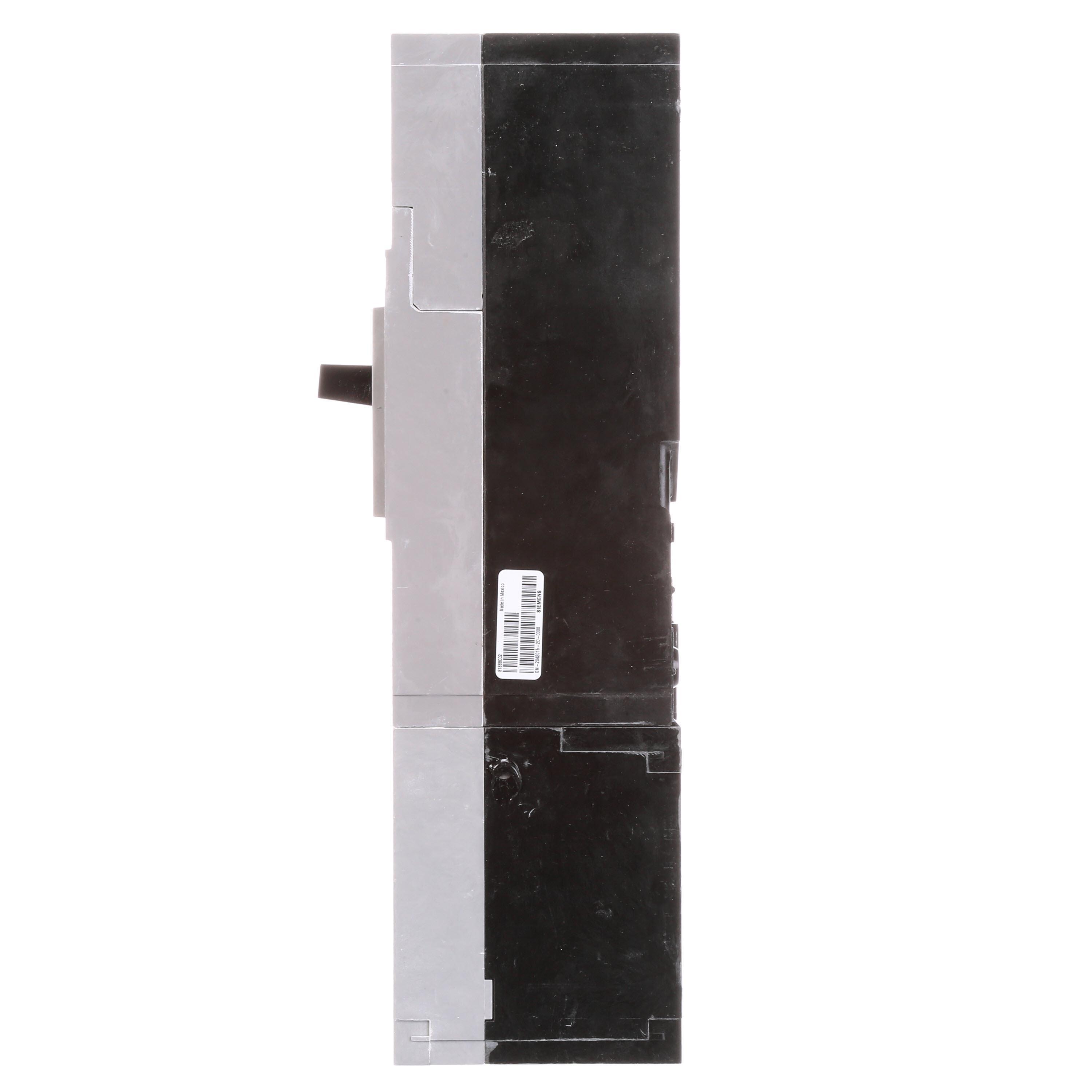

Siemens CFD63B250 Sentron Molded Case Circuit Breaker
Part Number # CFD63B250
SKU # 2350508
Siemens CFD63B250 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | CFD63B250 |
| SKU #: | 2350508 |
| Amperage Rating: | 250, 250 A |
| Dimensions: | 7.5 in L x 7.5 in W x 16.8 in H |
| Frame: | FD |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 100, 100 kA |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Trip Range: | 1100 to 2500, 1100 to 2500 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Type CFD6 Current Limiting Fuseless Low Voltage |
| Country of origin: | MX |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00783643212213 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens CFD63B250 Sentron Molded Case Circuit Breaker
Brand: Siemens
Part Number: CFD63B250
Siemens Sentron Molded Case Circuit Breaker, Type CFD6 Current Limiting Fuseless Low Voltage, 600 VAC/500 VDC, 250 A, 50/60 Hz Frequency, 100 kA Interrupt, FD Frame, Thermal/Magnetic Trip, 1100 to 2500 A Trip, 3 Pole, 40 deg C, 7.5 in L x 7.5 in W x 16.8 in H Dimensions
Additional Description: SIEM-CFD63B250 (N) BRKR CFD6 3P 600V 250A NON-CANCELABLE, NON-RETURNABLE
Catalog Description: SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH FUSELESS CURRENT LIMITING BREAKING CAPACITY. 250A 3-POLE (100KAIC AT 600V) (200KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x Hx D) IN 4.50 x 14.3 x 4.00.
CFD63B250 Application
Standard 40C Breaker ApplicationsCFD63B250 Item Features
- Highest IC rating and current limiting
- Varying actuator
CFD63B250 Standards
UL/HACRSKU #2350508Part Number #CFD63B250UNSPSC39121601UPC00783643212213
