Part Number # CND63B100
SKU # 2350488
Image provided may only be a representation of
final product and may include optional equipment
CND63B100

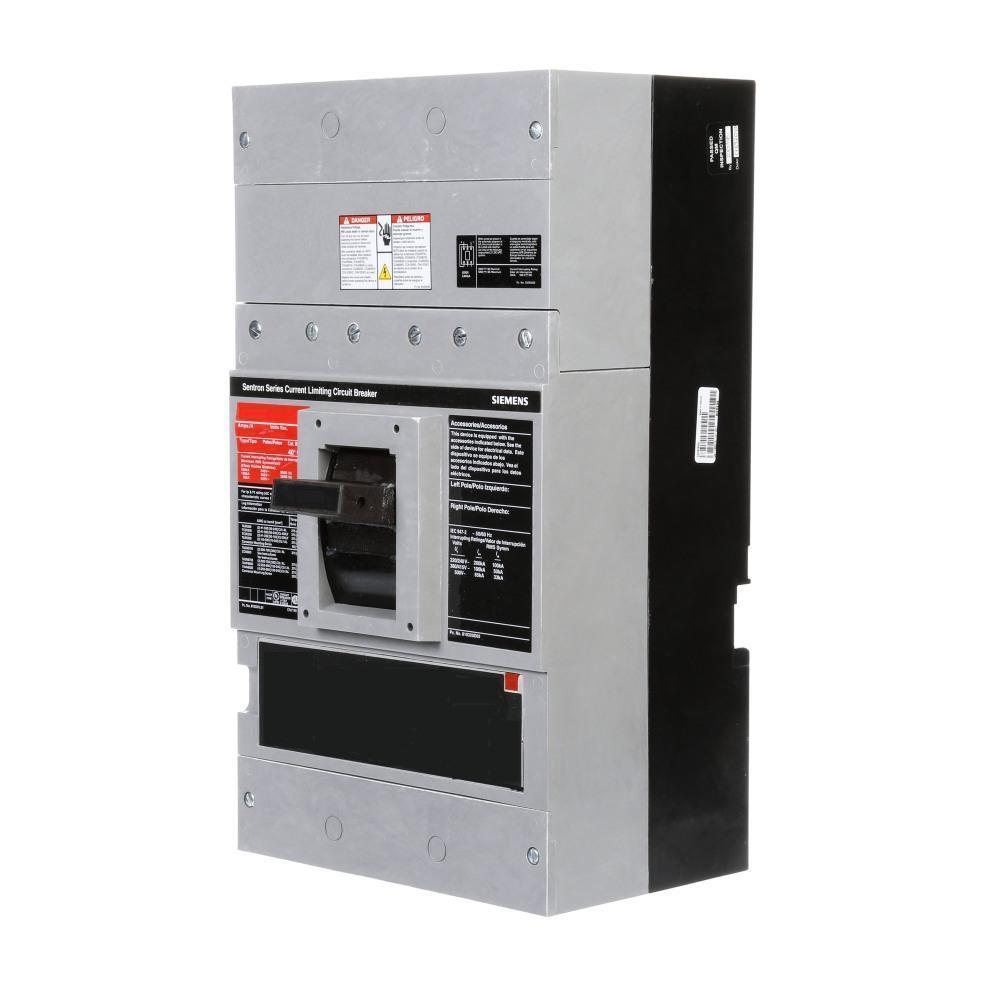

Siemens CND63B100 Sentron Molded Case Circuit Breaker
Part Number # CND63B100
SKU # 2350488
Siemens CND63B100 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | CND63B100 |
| SKU #: | 2350488 |
| Amperage Rating: | 1000, 1000 A |
| Dimensions: | 10 in L x 12 in W x 19 in H |
| Frame: | ND |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 65, 65 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Trip Range: | 5000 to 10000, 5000 to 10000 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Type CND6 Current Limiting |
| Wire Size: | 250 to 500, 250 to 500 kcmil |
| Connection type: | Line/Load Lug |
| Country of origin: | MX |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00783643215863 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens CND63B100 Sentron Molded Case Circuit Breaker
Brand: Siemens
Part Number: CND63B100
Siemens Sentron Molded Case Circuit Breaker, Type CND6 Current Limiting, 600 VAC, 1000 A, 50/60 Hz Frequency, 65 kA Interrupt, ND Frame, Thermal/Magnetic Trip, 5000 to 10000 A Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 250 to 500 kcmil Wire, 40 deg C, 10 in L x 12 in W x 19 in H Dimensions
Additional Description: SIEM-CND63B100 BRKR CND6 3P 600V 1000A
Catalog Description: SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER ND FRAME WITH FUSELESS CURRENT LIMITING BREAKING CAPACITY. 1000A 3-POLE (65KAIC AT 600V) (100KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x Hx D) IN 9.00 x 16.0 x 6.00.
CND63B100 Application
Standard 40C Breaker ApplicationsCND63B100 Item Features
- Field installable external accessories
- Series connected short circuit ratings
CND63B100 Standards
UL 489|IEC 60 947-2|HACR RatedSKU #2350488Part Number #CND63B100UNSPSC39121601UPC00783643215863
