Part Number # ED61B015
SKU # 2221642
ED61B015

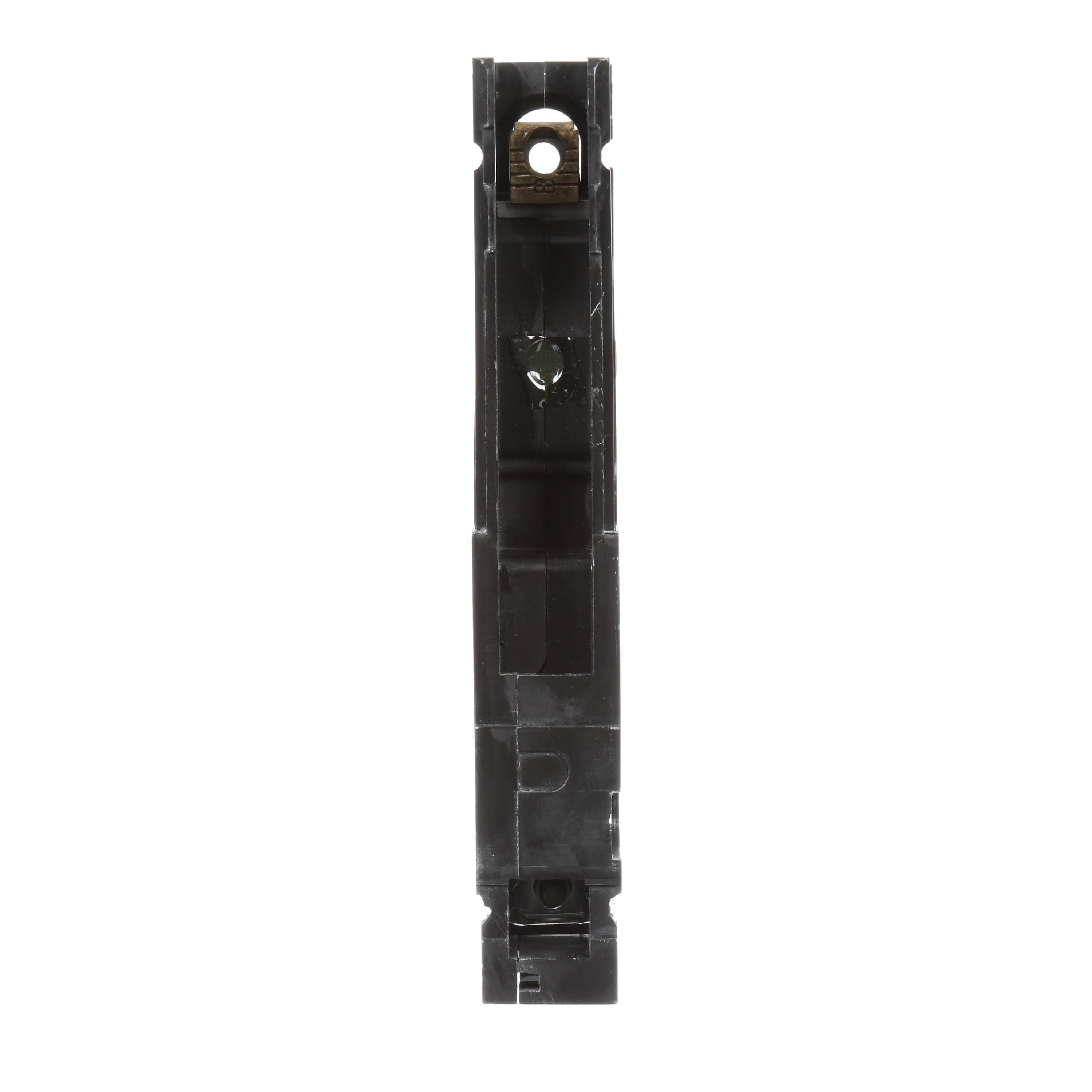

Siemens ED61B015 Sentron Molded Case Circuit Breaker
Part Number # ED61B015
SKU # 2221642
Siemens ED61B015 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | ED61B015 |
| SKU #: | 2221642 |
| Amperage Rating: | 15, 15 A |
| Dimensions: | 4 in L x 6 in W x 7 in H |
| Frame: | ED |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 30, 30 kA |
| Number of Poles: | 1 |
| Phase: | 1 |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Type ED6 Low Voltage |
| Wire Size: | 14 to 10 AWG, 12 to 10 AWG |
| Connection type: | Load Lug |
| Country of origin: | MX |
| Mounting type: | Panel |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00783643218444 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens ED61B015 Sentron Molded Case Circuit Breaker
Brand: Siemens
Part Number: ED61B015
Siemens Sentron Molded Case Circuit Breaker, Type ED6 Low Voltage, 347 VAC, 15 A, 50/60 Hz Frequency, 30 kA Interrupt, ED Frame, Thermal/Magnetic Trip, 1 Pole, 1 ph, Load Lug Connection, 14 to 10 AWG, 12 to 10 AWG Wire, Panel Mounting, 40 deg C, 4 in L x 6 in W x 7 in H Dimensions
Additional Description: SIEM-ED61B015 (N) BRKR ED6 1P 600V 15A CSA NON-CANCELABLE, NON-RETURNABLE
Catalog Description: SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. 15A 1-POLE (30KAIC AT 347V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (SA1E025) WIRE RANGE 14 - 10AWG (CU) / 12 - 10AWG (AL). DIMENSIONS (W x H x D) IN 1.00 x 6.4 x 3.92.
ED61B015 Application
Standard 40C Breaker ApplicationsED61B015 Item Features
- All ED frame circuit breakers may be reverse connected
- 14 to 10 AWG copper, 12 to 10 AWG aluminum wire range
- Varying actuator
- Varying enclosure
- Blue label
ED61B015 Standards
HACRSKU #2221642Part Number #ED61B015UNSPSC39121601UPC00783643218444
Image provided may only be a representation of final product and may include optional equipment
