Part Number # ED63A040
SKU # 19880
ED63A040

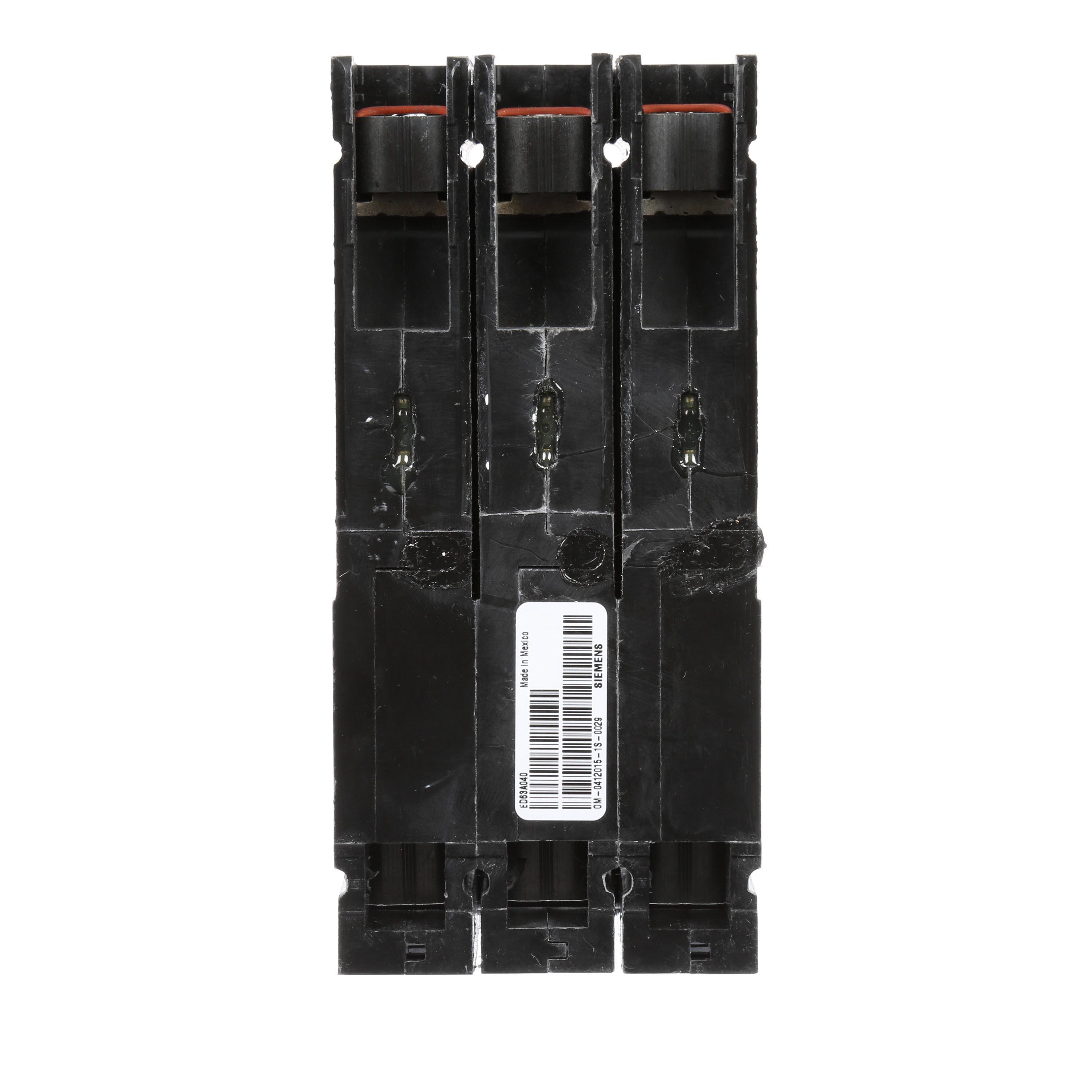

Siemens ED63A040 Sentron Molded Case Circuit Breaker
Part Number # ED63A040
SKU # 19880
$2559.29 / Each
Typical price:$3770.00 / Each
Siemens ED63A040 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | ED63A040 |
| SKU #: | 19880 |
| Amperage Rating: | 40 A |
| Dimensions: | 4 in L x 7 in W x 6 in H |
| Frame: | ED |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 18 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 40 deg C |
| Trip Range: | 115 to 375 A |
| Trip Type: | Thermal Magnetic |
| Type: | Type ED6 Low Voltage |
| Wire Size: | 10 to 1/0 AWG |
| Connection type: | Load Lug |
| Country of origin: | MX |
| Mounting type: | Bolted-On |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00783643214958 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2559.29 / Each
Typical price:$3770.00 / Each
Quantity:
- Siemens Sentron, ED63A040, Molded Case Circuit Breaker, Type ED6 Low Voltage, 600 V AC/250 V DC, 40 A, 50/60 Hz Frequency, 18 kA Interrupt, ED Frame, Thermal Magnetic Trip, 115 to 375 A Trip, 3 Pole, 3 ph, Load Lug Connection, 10 to 1/0 AWG Wire, Bolted-On Mounting, 40 deg C, 4 in L x 7 in W x 6 in H Dimensions
ED63A040 Application
For standard range ETI breakerED63A040 Item Features
- Field installable external accessories
- Varying enclosure
- Many sizes for motor circuit protectors and molded case switches
- Series connected short circuit ratings
- Highest IC rating and current limiting
- Red label
- 10 to 1/0 AWG copper aluminum wire range
- Thermal magnetic and solid states
- Standard range ETI breaker
- Varying actuator
- All ED frame circuit breakers may be reverse connected
ED63A040 Standards
HACR Rated|UL 489SKU #19880Part Number #ED63A040UNSPSC39121601UPC00783643214958
Image provided may only be a representation of final product and may include optional equipment
