Part Number # ED63B035
SKU # 2201662

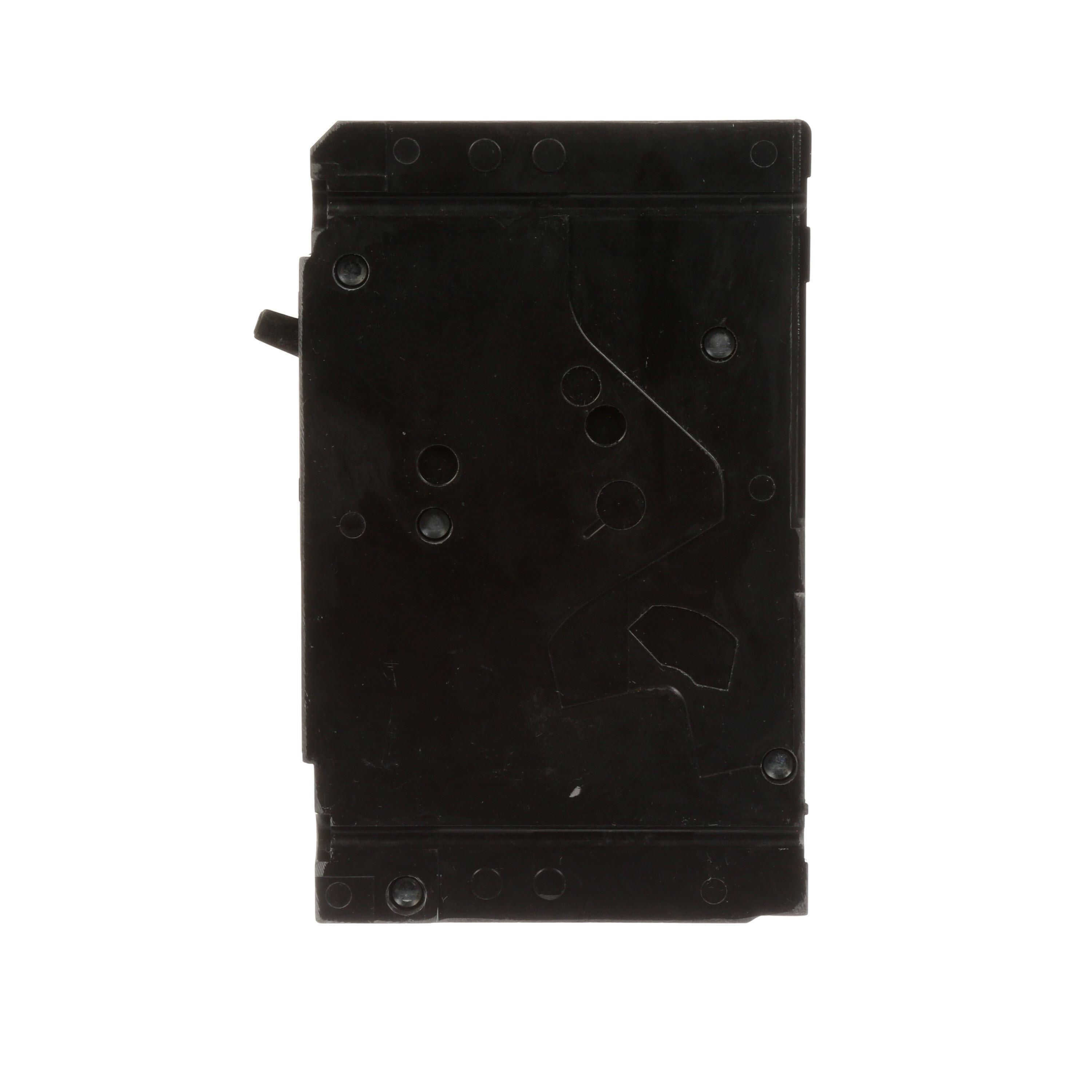

Image provided may only be a representation of
final product and may include optional equipment
ED63B035
Siemens ED63B035 Sentron Molded Case Circuit Breaker
Part Number # ED63B035
SKU # 2201662
Siemens ED63B035 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | ED63B035 |
| SKU #: | 2201662 |
| Amperage Rating: | 35, 35 A |
| Dimensions: | 4 in L x 7 in W x 6 in H |
| Frame: | ED |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 18, 18 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Type ED6 Low Voltage |
| Connection type: | Line Lug |
| Country of origin: | MX |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00783643209701 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens ED63B035 Sentron Molded Case Circuit Breaker
Brand: Siemens
Part Number: ED63B035
Siemens Sentron Molded Case Circuit Breaker, Type ED6 Low Voltage, 600 VAC/250 VDC, 35 A, 50/60 Hz Frequency, 18 kA Interrupt, ED Frame, Thermal/Magnetic Trip, 3 Pole, 3 ph, Line Lug Connection, 40 deg C, 4 in L x 7 in W x 6 in H Dimensions
Additional Description: SIEM-ED63B035 (N) BRKR ED6 3P 600V 35A NON-CANCELABLE, NON-RETURNABLE
Catalog Description: SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. 35A 3-POLE (18KAIC AT 600V) (25KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (LN1E100) WIRE RANGE 10 - 1/0AWG (CU/AL). DIMENSIONS (W x H x D) IN 3.00 x 6.4 x 3.92.
ED63B035 Application
Standard 40C Breaker ApplicationsED63B035 Item Features
- Varying actuator
ED63B035 Standards
HACR RatedSKU #2201662Part Number #ED63B035UNSPSC39121601UPC00783643209701
