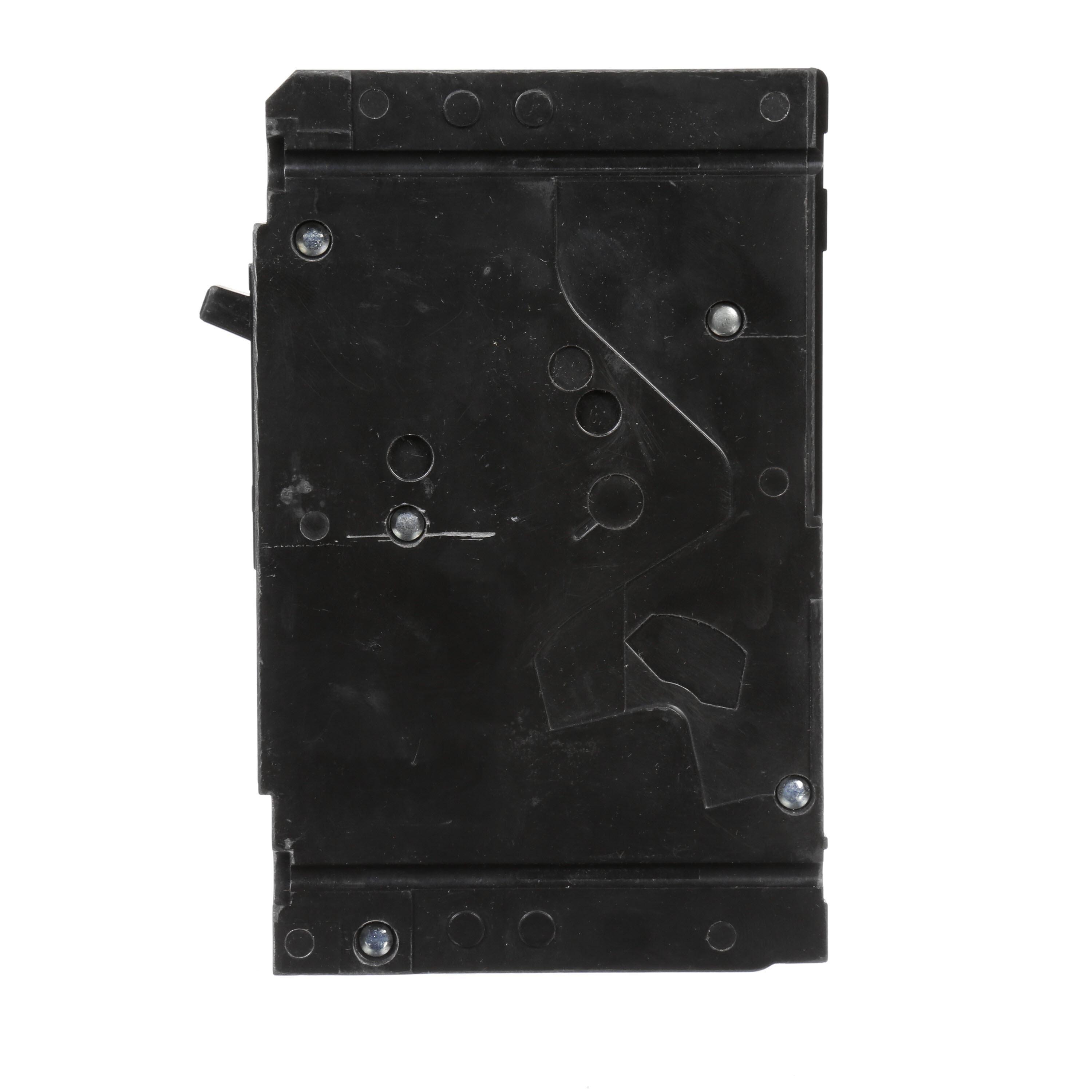

Image provided may only be a representation of
final product and may include optional equipment
ED63B050
Siemens ED63B050 Sentron Molded Case Circuit Breaker
Part Number # ED63B050
SKU # 19891
Siemens ED63B050 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | ED63B050 |
| SKU #: | 19891 |
| Amperage Rating: | 50, 50 A |
| Dimensions: | 4.2 in L x 5.9 in W x 7.6 in H |
| Frame: | ED |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 18, 18 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Type ED6 Low Voltage |
| Wire Size: | 10 to 1/0, 10 to 1/0 AWG |
| Connection type: | Load Lug |
| Country of origin: | MX |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00783643209732 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens ED63B050 Sentron Molded Case Circuit Breaker
Brand: Siemens
Part Number: ED63B050
Siemens Sentron Molded Case Circuit Breaker, Type ED6 Low Voltage, 600 VAC/250 VDC, 50 A, 50/60 Hz Frequency, 18 kA Interrupt, ED Frame, Thermal/Magnetic Trip, 3 Pole, 3 ph, Load Lug Connection, 10 to 1/0 AWG Wire, 40 deg C, 4.2 in L x 5.9 in W x 7.6 in H Dimensions
Additional Description: SIEM-ED63B050 BRKR ED6 3P 600V 50A
Catalog Description: SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. 50A 3-POLE (18KAIC AT 600V) (25KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (LN1E100) WIRE RANGE 10 - 1/0AWG (CU/AL). DIMENSIONS (W x H x D) IN 3.00 x 6.4 x 3.92.
ED63B050 Application
Standard 40C Breaker ApplicationsED63B050 Item Features
- All ED frame circuit breakers may be reverse connected
- 10 to 1/0 AWG copper aluminum wire range
- Varying actuator
- Varying enclosure
- Blue label
ED63B050 Standards
HACR Rated|UL 489SKU #19891Part Number #ED63B050UNSPSC39121601UPC00783643209732
