ED63B070L

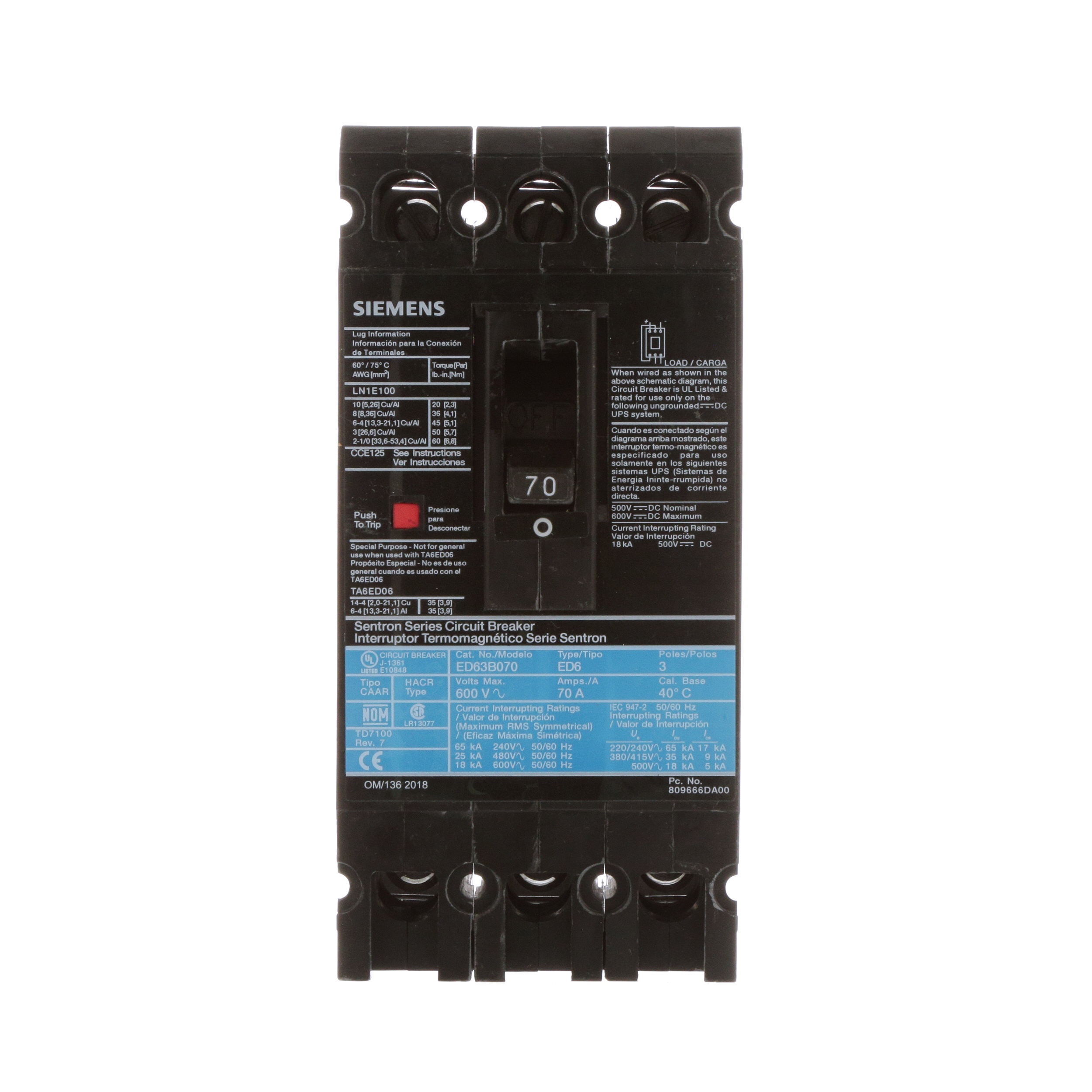

Siemens ED63B070L Sentron Molded Case Circuit Breaker
Part Number # ED63B070L
SKU # 163199
Siemens ED63B070L Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | ED63B070L |
| SKU #: | 163199 |
| Amperage Rating: | 70, 70 A |
| Dimensions: | 5.6 in L x 3.9 in W x 7.3 in H |
| Frame: | ED |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 18, 18 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Type ED6 Low Voltage |
| Wire Size: | 10 to 1/0, 10 to 1/0 AWG |
| Connection type: | Line/Load Lug |
| Country of origin: | MX |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00783643236356 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens ED63B070L Sentron Molded Case Circuit Breaker
Brand: Siemens
Part Number: ED63B070L
Siemens Sentron Molded Case Circuit Breaker, Type ED6 Low Voltage, 600 VAC/250 VDC, 70 A, 50/60 Hz Frequency, 18 kA Interrupt, ED Frame, Thermal/Magnetic Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 10 to 1/0 AWG Wire, 40 deg C, 5.6 in L x 3.9 in W x 7.3 in H Dimensions
Additional Description: SIEM-ED63B070L BRKR ED6 3P 600V 70A LUG
Catalog Description: SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. 70A 3-POLE (18KAIC AT 600V) (25KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (LN1E100) WIRE RANGE 10 - 1/0AWG (CU/AL). DIMENSIONS (W x H x D) IN 3.00 x 6.4 x 3.92.
ED63B070L Application
Standard 40C Breaker ApplicationsED63B070L Item Features
- All ED frame circuit breakers may be reverse connected
- 10 to 1/0 AWG copper aluminum wire range
- Varying actuator
- Varying enclosure
- Blue label
ED63B070L Standards
HACRSKU #163199Part Number #ED63B070LUNSPSC39121601UPC00783643236356
