Part Number # ED63B090L
SKU # 160571
Brand: Siemens
ED63B090L

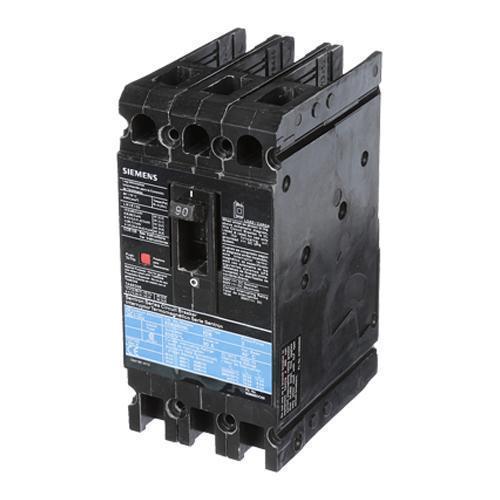

Siemens ED63B090L Sentron Molded Case Circuit Breaker
Part Number # ED63B090L
SKU # 160571
$3019.56 / Each
Typical price:$4448.00 / Each
Siemens ED63B090L Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | ED63B090L |
| SKU #: | 160571 |
| Amperage Rating: | 90 A |
| Dimensions: | 4 in L x 7 in W x 6 in H |
| Frame: | ED |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 18 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 40 deg C |
| Trip Type: | Thermal Magnetic |
| Type: | Type ED6 Low Voltage |
| Wire Size: | 10 to 1/0 AWG |
| Connection type: | Line/Load Lug |
| Country of origin: | MX |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00783643236370 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3019.56 / Each
Typical price:$4448.00 / Each
Quantity:
- Siemens Sentron, ED63B090L, Molded Case Circuit Breaker, Type ED6 Low Voltage, 600 V AC/250 V DC, 90 A, 50/60 Hz Frequency, 18 kA Interrupt, ED Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 10 to 1/0 AWG Wire, 40 deg C, 4 in L x 7 in W x 6 in H Dimensions
ED63B090L Application
Standard 40C Breaker ApplicationsED63B090L Item Features
- 3/0 AWG to 500 kcmil copper, 4/0 AWG to 500 kcmil aluminum wire conductors
- Varying enclosure
- High IC rating
- Varying actuator
- Blue label
- All ED frame circuit breakers may be reverse connected
ED63B090L Standards
BAA Compliant|HACR Rated|UL 489SKU #160571Part Number #ED63B090LUNSPSC39121601UPC00783643236370
Image provided may only be a representation of final product and may include optional equipment
