Part Number # FXD63A250
SKU # 2227183
Image provided may only be a representation of
final product and may include optional equipment
FXD63A250

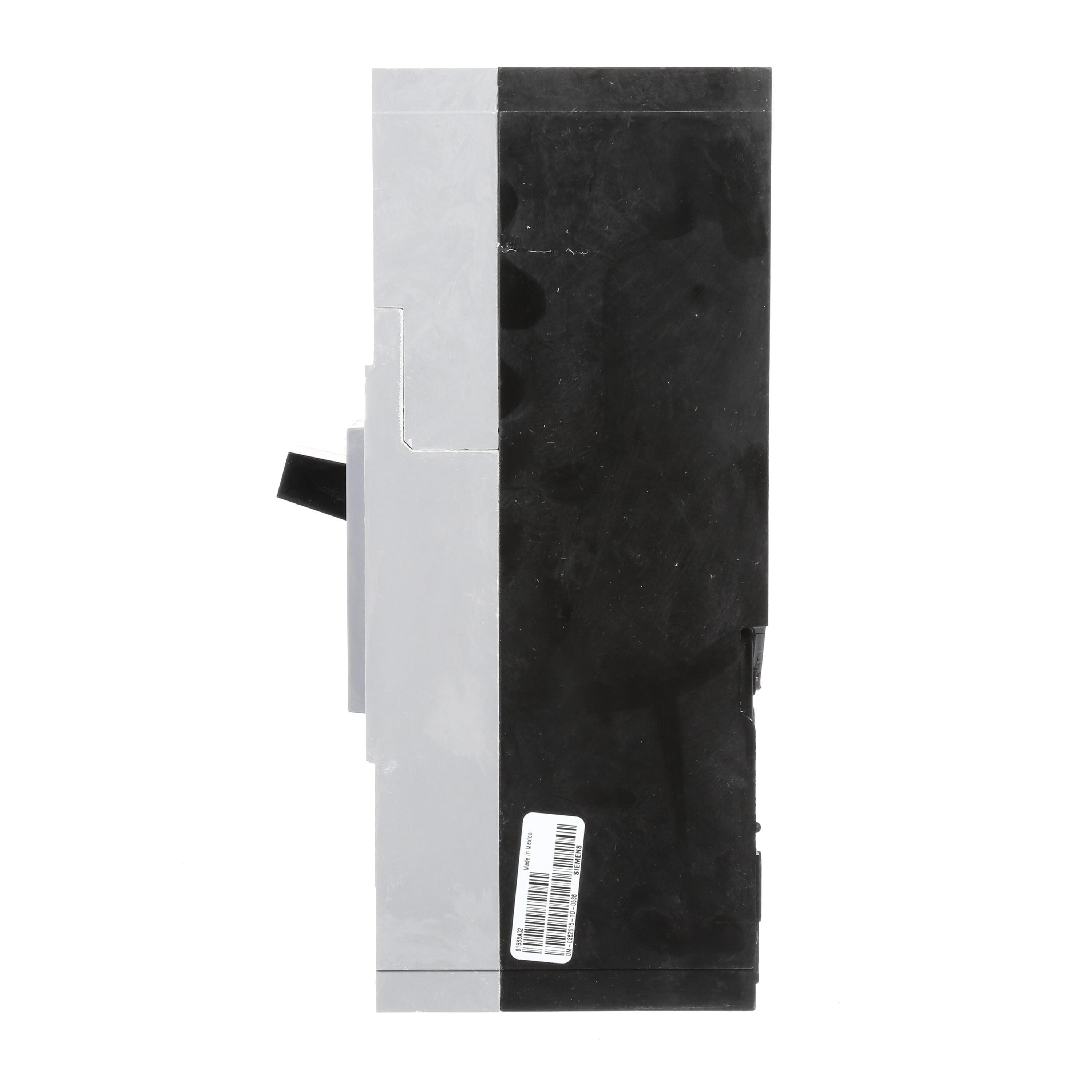

Siemens FXD63A250 Sentron Molded Case Circuit Breaker
Part Number # FXD63A250
SKU # 2227183
Siemens FXD63A250 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | FXD63A250 |
| SKU #: | 2227183 |
| Amperage Rating: | 250, 250 A |
| Dimensions: | 6.9 in L x 5.5 in W x 11.3 in H |
| Frame: | FD |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 22, 22 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Trip Range: | 1100 to 2500, 1100 to 2500 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Type FXD6 Low Voltage |
| Connection type: | Line/Load Lug |
| Country of origin: | MX |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00783643212282 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens FXD63A250 Sentron Molded Case Circuit Breaker
Brand: Siemens
Part Number: FXD63A250
Siemens Sentron Molded Case Circuit Breaker, Type FXD6 Low Voltage, 600 VAC, 250 A, 50/60 Hz Frequency, 22 kA Interrupt, FD Frame, Thermal/Magnetic Trip, 1100 to 2500 A Trip, 3 Pole, 3 ph, Line/Load Lug Connection, 40 deg C, 6.9 in L x 5.5 in W x 11.3 in H Dimensions
Additional Description: SIEM-FXD63A250 BRKR, BREAKER FD 3P 250A 600V 22KA ETI
Catalog Description: SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH MAGNETIC TRIP ONLYUNIT. STANDARD RANGE ETI BREAKER FD FRAME WITH STAND ARDBREAKING CAPACITY AND NON INTERCHANGEABLE TRIP. MEETS UL 489 / IEC60947-2 STANDARDS. 250A 3-POLE BREAKER (22KAIC AT 600V) (35KAIC AT480V). SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN 4.5 x 9.5 x 4._____________________________________________ ___________________________
FXD63A250 Application
For standard range ETI breakerFXD63A250 Item Features
- Molded case circuit breakers are used in motor circuits as a disconnecting means and for short circuit protection
- They should be used in conjunction with motor running, over-current-protection devices and should permit the motor to start without nuisance tripping from motor-inrush current
- The circuit breaker should have a continuous current rating of not less than 115% of the motor full load current
- Varying actuator
- Varying enclosure
- Blue label
- Standard range ETI breaker
FXD63A250 Standards
HACRSKU #2227183Part Number #FXD63A250UNSPSC39121601UPC00783643212282
