Part Number # HFD63B150
SKU # 2193597
HFD63B150

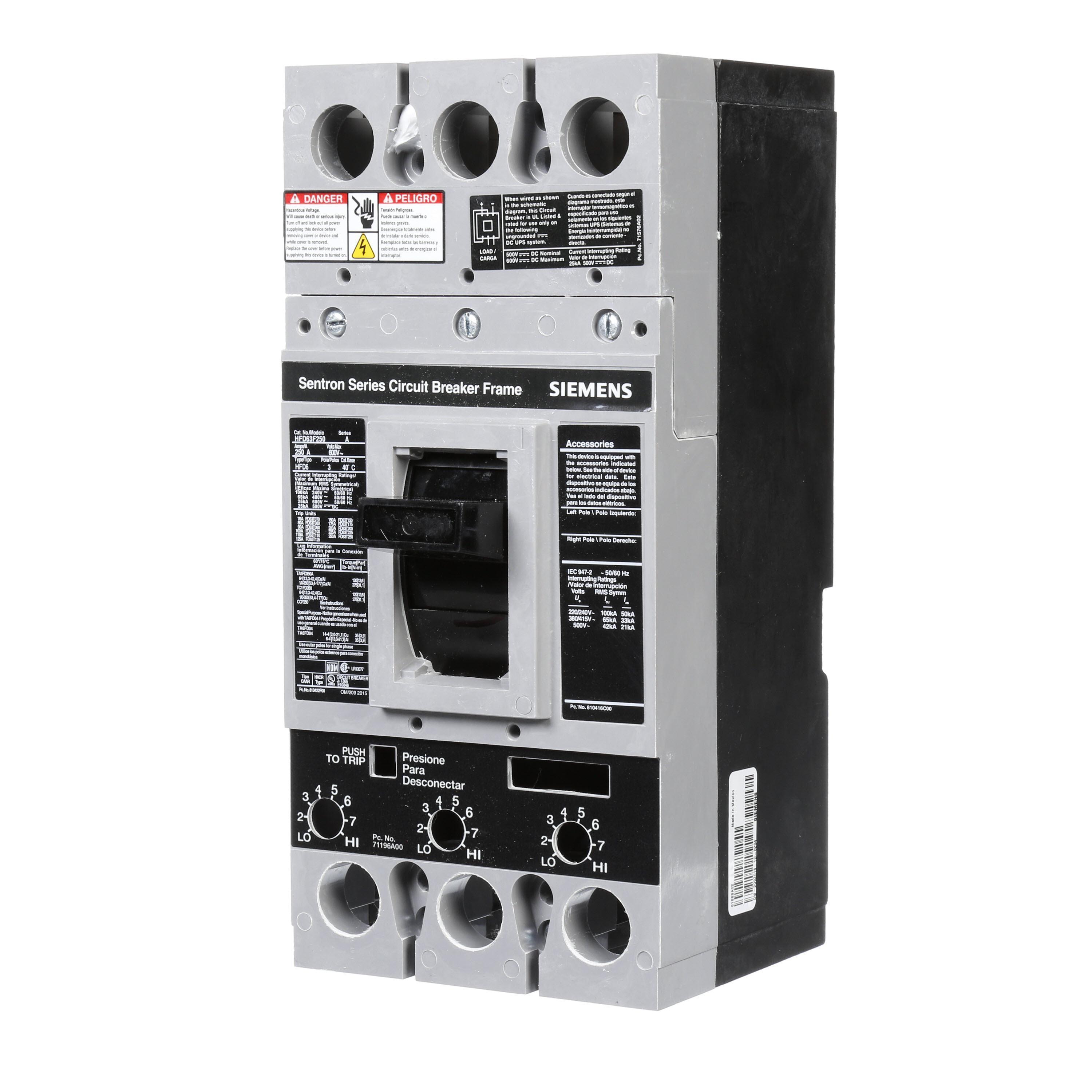

Siemens HFD63B150 Sentron Molded Case Circuit Breaker
Part Number # HFD63B150
SKU # 2193597
Siemens HFD63B150 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | HFD63B150 |
| SKU #: | 2193597 |
| Amperage Rating: | 150, 150 A |
| Dimensions: | 6.7 in L x 6 in W x 11 in H |
| Frame: | FD |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 25, 25 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Trip Range: | 800 to 1500, 800 to 1500 A |
| Trip Type: | Interchangeable Thermal-Magnetic, Interchangeable/Thermal Magnetic, Thermal Magnetic |
| Type: | Type HFD6 Low Voltage |
| Wire Size: | 4 AWG to 350 kcmil, 6 AWG to 350 kcmil |
| Connection type: | Bolt-On |
| Country of origin: | MX |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00783643211827 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens HFD63B150 Sentron Molded Case Circuit Breaker
Brand: Siemens
Part Number: HFD63B150
Siemens Sentron Molded Case Circuit Breaker, Type HFD6 Low Voltage, 600 VAC/500 VDC, 150 A, 50/60 Hz Frequency, 25 kA Interrupt, FD Frame, Interchangeable Thermal-Magnetic Trip, 800 to 1500 A Trip, 3 Pole, 3 ph, Bolt-On Connection, 4 AWG to 350 kcmil, 6 AWG to 350 kcmil Wire, 40 deg C, 6.7 in L x 6 in W x 11 in H Dimensions
Additional Description: SIEM-HFD63B150 (N) BRKR HFD6 3P 600V 150A NON-CANCELABLE, NON-RETURNABLE CONSISTS OF: (1) HFD63F250 (1) FD63T150 (6) TA1FD350A NON-CANCELABLE, NON-RETURNABLE
Catalog Description: SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. UN-ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH HIGH BREAKING CAPACITY. 150A 3-POLE (25KAIC AT 600V) (65KAIC AT 480V). INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA1FD350A) WIRE RANGE 6AWG - 350KCMIL (CU) / 4AWG - 350KCMIL (AL). DIMENSIONS (W x H x D) IN 4.50 x 9.5 x 4.00.
HFD63B150 Application
Standard 40C Breaker ApplicationsHFD63B150 Item Features
- 6 AWG to 350 kcmil copper, 4 AWG to 350 kcmil aluminum wire range
- Varying actuator
- Varying enclosure
HFD63B150 Standards
CE Marked|HACR RatedSKU #2193597Part Number #HFD63B150UNSPSC39121601UPC00783643211827
Image provided may only be a representation of final product and may include optional equipment
