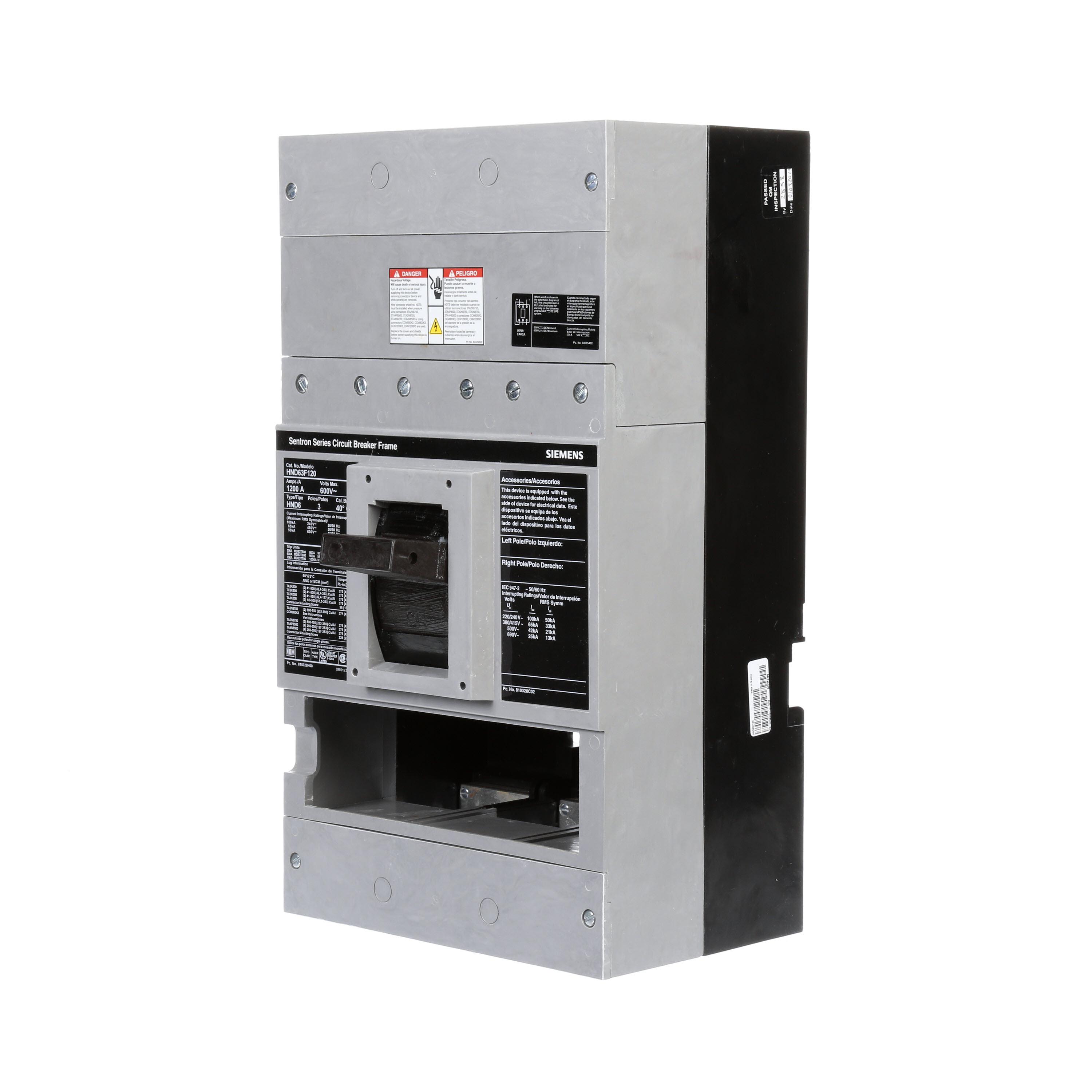

Siemens HND63B100 Sentron Molded Case Circuit Breaker
Part Number # HND63B100
SKU # 2248936
Siemens HND63B100 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | HND63B100 |
| SKU #: | 2248936 |
| Amperage Rating: | 1000, 1000 A |
| Dimensions: | 10 in L x 12 in W x 19 in H |
| Frame: | ND |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 50, 50 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Trip Range: | 5000 to 10000, 5000 to 10000 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Type HND6 Low Voltage |
| Wire Size: | 250 to 500, 250 to 500 kcmil |
| Connection type: | Bolt-On |
| Country of origin: | MX |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00783643215634 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens HND63B100 Sentron Molded Case Circuit Breaker
Brand: Siemens
Part Number: HND63B100
Siemens Sentron Molded Case Circuit Breaker, Type HND6 Low Voltage, 600 VAC/500 VDC, 1000 A, 50/60 Hz Frequency, 50 kA Interrupt, ND Frame, Thermal/Magnetic Trip, 5000 to 10000 A Trip, 3 Pole, 3 ph, Bolt-On Connection, 250 to 500 kcmil Wire, 40 deg C, 10 in L x 12 in W x 19 in H Dimensions
Additional Description: SIEM-HND63B100 BRKR HND6 3P 600V 1000A
Catalog Description: SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. UN-ASSEMBLED STANDARD 40 DEG C BREAKER ND FRAME WITH HIGH BREAKING CAPACITY. 1000A 3-POLE (50KAIC AT 600V) (65KAIC AT 480V). INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA4N8500) WIRE RANGE 250 - 500KCMIL (CU/AL). DIMENSIONS (W x H x D) IN 9.00 x 16.0 x 6.00.
HND63B100 Application
Standard 40C Breaker ApplicationsHND63B100 Item Features
- 250 to 500 kcmil copper aluminum wire range
- Varying actuator
- Varying enclosure
HND63B100 Standards
UL Listed|HACR RatedSKU #2248936Part Number #HND63B100UNSPSC39121601UPC00783643215634
Image provided may only be a representation of final product and may include optional equipment
