Part Number # LD63B500
SKU # 2195409

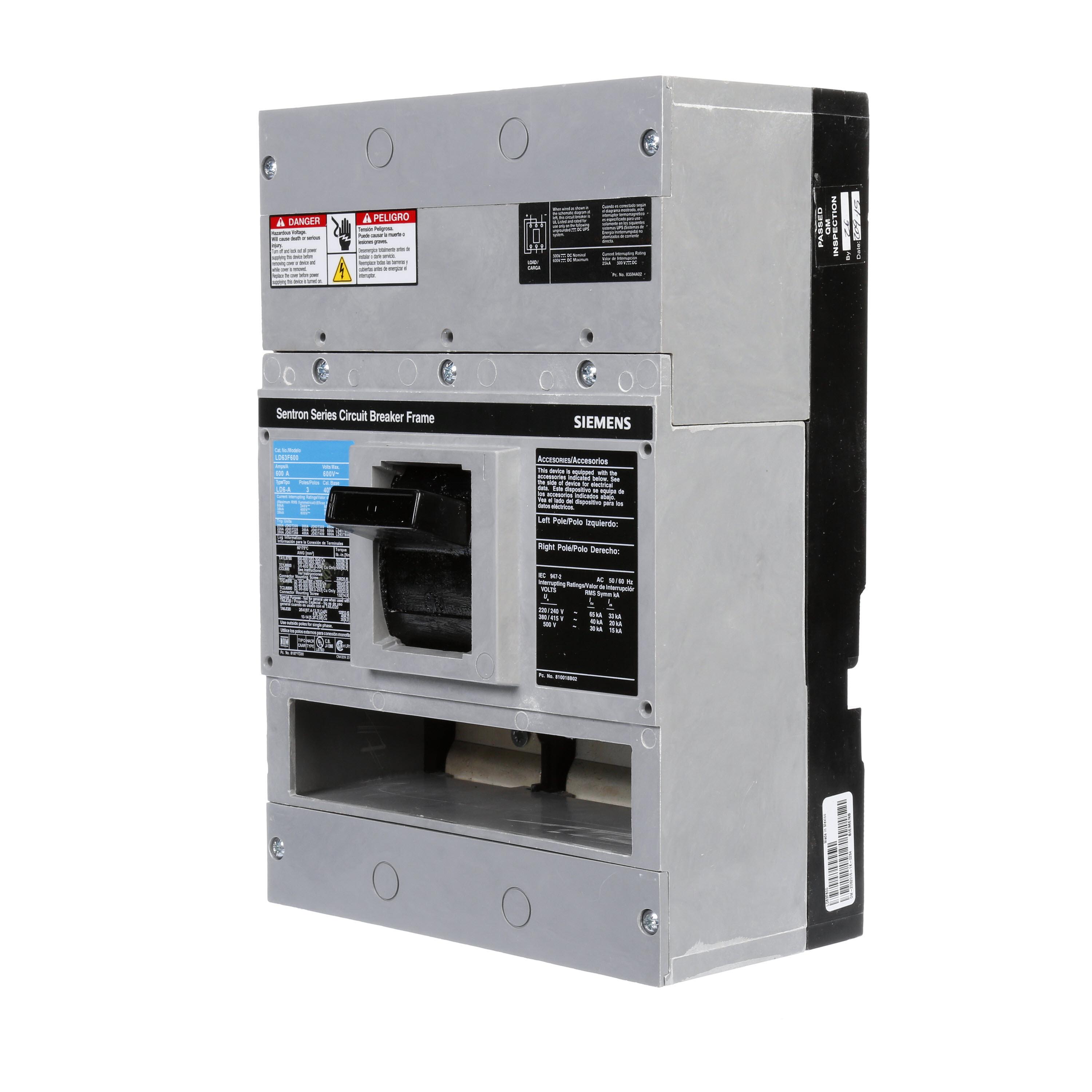

Image provided may only be a representation of
final product and may include optional equipment
LD63B500
Siemens LD63B500 Sentron Molded Case Circuit Breaker
Part Number # LD63B500
SKU # 2195409
Siemens LD63B500 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | LD63B500 |
| SKU #: | 2195409 |
| Amperage Rating: | 500, 500 A |
| Dimensions: | 7 in L x 9 in W x 15 in H |
| Frame: | LD |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 25, 25 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Trip Range: | 3000 to 6000, 3000 to 6000 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Type LD6 Low Voltage |
| Connection type: | Load Lug |
| Country of origin: | MX |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00783643213890 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens LD63B500 Sentron Molded Case Circuit Breaker
Brand: Siemens
Part Number: LD63B500
Siemens Sentron Molded Case Circuit Breaker, Type LD6 Low Voltage, 600 VAC/500 VDC, 500 A, 50/60 Hz Frequency, 25 kA Interrupt, LD Frame, Thermal/Magnetic Trip, 3000 to 6000 A Trip, 3 Pole, 3 ph, Load Lug Connection, 40 deg C, 7 in L x 9 in W x 15 in H Dimensions
Additional Description: SIEM-LD63B500 BRKR LD6 3P 600V 500A
Catalog Description: SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. UN-ASSEMBLED STANDARD 40 DEG C BREAKER LD FRAME WITH STANDARD BREAKING CAPACITY. 500A 3-POLE (25KAIC AT 600V) (35KAIC AT 480V). INTERCHANGEABLE TRIPUNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA2J6500) WIRE RANGE 3/0AWG - 500KCMIL (CU) / 4/0AWG - 500KCMIL (AL). DIMENSIONS (W x H x D) IN 7.50 x 11.0 x 4.00.
LD63B500 Application
Standard 40C Breaker ApplicationsLD63B500 Item Features
- Varying actuator
LD63B500 Standards
UL Listed|HACR RatedSKU #2195409Part Number #LD63B500UNSPSC39121601UPC00783643213890
