Part Number # LGG3B015L
SKU # 2297295

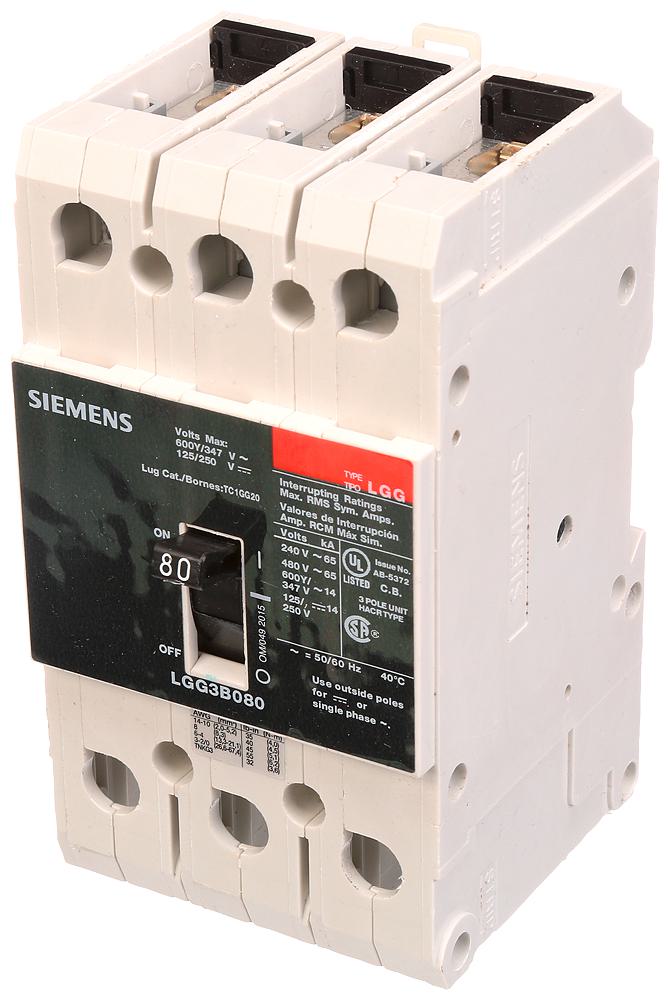

Image provided may only be a representation of
final product and may include optional equipment
LGG3B015L
Siemens LGG3B015L Molded Case Circuit Breaker
Part Number # LGG3B015L
SKU # 2297295
Siemens LGG3B015L Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | LGG3B015L |
| SKU #: | 2297295 |
| Amperage Rating: | 15, 15 A |
| Frame: | LGG, LGG/125A |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 65, 65 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Low Voltage |
| Connection type: | Cable-In/Cable-Out |
| Country of origin: | MX |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00887621279158 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens LGG3B015L Molded Case Circuit Breaker
Brand: Siemens
Part Number: LGG3B015L
Siemens Molded Case Circuit Breaker, Low Voltage, 480 VAC, 15 A, 50/60 Hz Frequency, 65 kA Interrupt, LGG Frame, Thermal/Magnetic Trip, 3 Pole, 3 ph, Cable-In/Cable-Out Connection, 40 deg C
Additional Description: SIEM-LGG3B015L (N) BRKR LGG 15A 3P 480V 65K LUGS NON-CANCELABLE, NON-RETURNABLE
Catalog Description: SIEMENS LOW VOLTAGE G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED LGG FRAME WITH VERY HIGH BREAKING CAPACITY. 15A 3-POLE (14KAIC AT 600Y/347V) (65KAIC AT 480V). SPECIAL FEATURES MOUNTS ON DIN RAIL / SCREW, LINE AND LOAD SIDE LUGS (TC1Q1) WIRE RANGE 14 - 10 AWS (CU/AL). DIMENSIONS (W x H x D) IN 3 x 5.4 x 2.8.
LGG3B015L Application
General ApplicationsLGG3B015L Item Features
- Integral DIN rail or base mount without adapters (GG)
- Removable lugs
- Overcenter toggle and trip free mechanism
- Suitable for reverse feed applications
- Common trip
LGG3B015L Standards
UL 489|CSA-C22.2SKU #2297295Part Number #LGG3B015LUNSPSC39121601UPC00887621279158
