Part Number # MD63B800
SKU # 1569868
MD63B800
Siemens MD63B800 Sentron Molded Case Circuit Breaker
Part Number # MD63B800
SKU # 1569868
Siemens MD63B800 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | MD63B800 |
| SKU #: | 1569868 |
| Amperage Rating: | 800, 800 A |
| Dimensions: | 10 in L x 12 in W x 19 in H |
| Frame: | MD |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 25, 25 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Trip Range: | 4000 to 8000, 4000 to 8000 A |
| Trip Type: | LI/Thermal Magnetic, Thermal Magnetic |
| Type: | Type MD6 Low Voltage |
| Connection type: | Load Lug |
| Country of origin: | MX |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00783643214484 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens MD63B800 Sentron Molded Case Circuit Breaker
Brand: Siemens
Part Number: MD63B800
Siemens Sentron Molded Case Circuit Breaker, Type MD6 Low Voltage, 600 VAC/250 VDC, 800 A, 50/60 Hz Frequency, 25 kA Interrupt, MD Frame, LI/Thermal Magnetic Trip, 4000 to 8000 A Trip, 3 Pole, 3 ph, Load Lug Connection, 40 deg C, 10 in L x 12 in W x 19 in H Dimensions
Additional Description: SIEM-MD63B800 BRKR MD6 3P 600V 800A
Catalog Description: SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. UN-ASSEMBLED STANDARD 40 DEG C BREAKER MD FRAME WITH STANDARD BREAKING CAPACITY. 800A 3-POLE (25KAIC AT 600V) (50KAIC AT 480V). INTERCHANGEABLE TRIPUNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA3K500) WIRE RANGE 1/0AWG - 500KCMIL (CU/AL). DIMENSIONS (W x H x D) IN 9.00 x 16.0 x 6.00.
MD63B800 Application
Standard 40C Breaker ApplicationsMD63B800 Item Features
- Varying actuator
- Varying enclosure
MD63B800 Standards
HACRSKU #1569868Part Number #MD63B800UNSPSC39121601UPC00783643214484

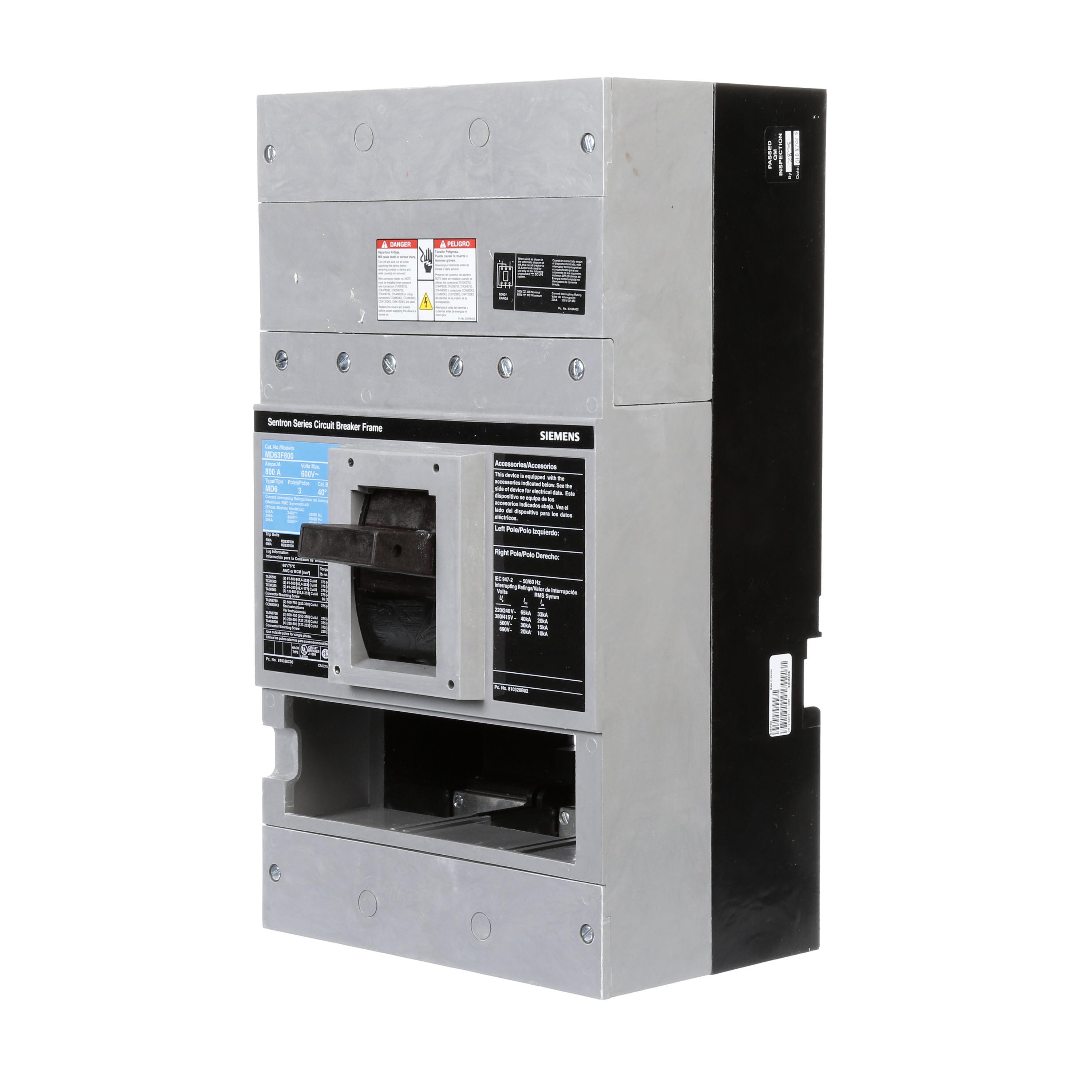

Image provided may only be a representation of final product and may include optional equipment
