Part Number # MT0050L
SKU # 2232522
Image Disclaimers Message
Brand: Siemens
MT0050L

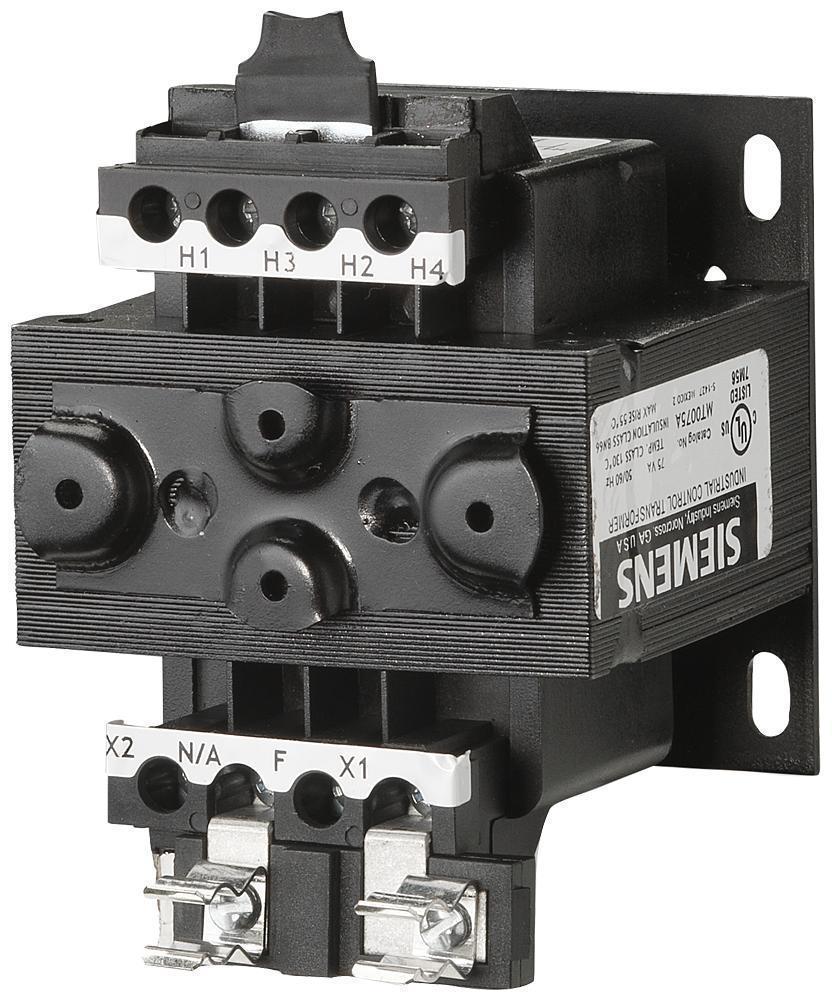

Siemens MT0050L Control Power Transformer
Part Number # MT0050L
SKU # 2232522
$132.67 / Each
Typical price:$251.00 / Each
Siemens MT0050L Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | MT0050L |
| SKU #: | 2232522 |
| Dimensions: | 3.45 in H x 3.31 in W x 4.41 in D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Insulation: | Class 130 deg C |
| Phase: | 1 |
| Primary Voltage: | 240/416/480/600 VAC, 230/400/460/575 VAC, 220/380/440/550 VAC, 208/500 VAC |
| Secondary Voltage: | 99/120/130 VAC, 95/115/125 VAC, 91/110/120 VAC, 85/100/110 VAC |
| Temperature Rating (Degrees F): | 55, 55 deg C |
| Type: | Class MT |
| Connection type: | Screw Terminal, Terminal Screw |
| Country of origin: | MX |
| Mounting type: | Slotted |
| Power factor: | 20, 20 %, 20% |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121026 |
| UPC: | 00754554353234 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$132.67 / Each
Typical price:$251.00 / Each
Quantity:
- Siemens Control Power Transformer, Class MT, 240/416/480/600 VAC, 230/400/460/575 VAC, 220/380/440/550 VAC, 208/500 VAC Primary, 99/120/130 VAC, 95/115/125 VAC, 91/110/120 VAC, 85/100/110 VAC Secondary, 50 VA Power, 50/60 Hz Frequency, 1 ph, Power Factor: 20 %, Screw Terminal Connection, Slotted Mounting, Class 130 deg C Insulation, IP20 Enclosure, 55 deg C, 3.45 in H x 3.31 in W x 4.41 in D Dimensions
MT0050L Application
Domestic ApplicationsMT0050L Includes
JumperMT0050L Item Features
- Enclosed coils, completely encloses the transformer coils against moisture, dust, dirt and industrial contaminants for maximum protection in hostile and industrial environments
- Fuse clips, factory mounted for integral fusing on the secondary side to save panel space, save wiring time and save the cost of buying an add on fuse block or kit
- Integrally finger-safe terminals, between terminals and transformer, protect against electrical creepage
- Up to 30% greater terminal contact area permits low loss connections
- Extra deep barriers reduce the chance of shorts from frayed leads or careless wiring
- Terminals molded into the transformer are difficult to break during wiring
- A full quarter-inch of thread on the 8-32 terminal screws prevents stripping and pullout
- Jumpers supplied, two jumper links are standard with all transformers which can be wired for dual primary voltages
- Integrally molded barriers
MT0050L Standards
UL Listed|cUL Listed|ANSI Specified|CSA CertifiedSKU #2232522Part Number #MT0050LUNSPSC39121026UPC00754554353234
