MT0250G

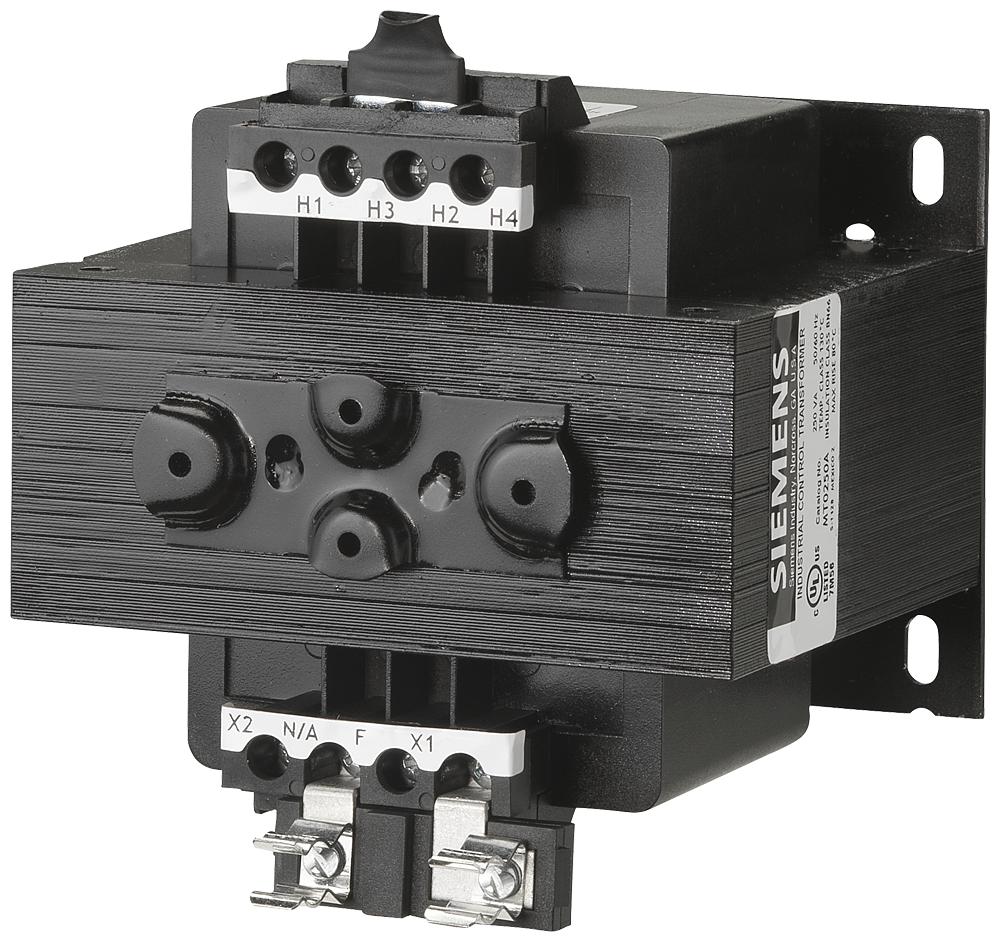

Siemens MT0250G Control Power Transformer
Part Number # MT0250G
SKU # 2342742
$247.90 / Each
Typical price:$469.00 / Each
Siemens MT0250G Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | MT0250G |
| SKU #: | 2342742 |
| Dimensions: | 4.47 in H x 4.5 in W x 4.78 in D |
| Enclosure Type: | IP20, Open |
| Frequency Rating: | 50/60, 50/60 Hz |
| Insulation: | Class 130 deg C |
| Phase: | 1 |
| Primary Voltage: | 208/230/460, 208/230/460 V AC, 208/230/460 VAC |
| Secondary Voltage: | 115, 115 V AC, 115 VAC |
| Temperature Rating (Degrees F): | -4 to 104 deg F, 55 |
| Type: | Class MT |
| Connection type: | Screw, Screw Terminal |
| Country of origin: | MX |
| Mounting type: | Slotted, Surface |
| Power factor: | 20 |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121026 |
| UPC: | 00754554027166 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$247.90 / Each
Typical price:$469.00 / Each
Quantity:
- Siemens Control Power Transformer, Class MT, 208/230/460 V AC Primary, 115 VAC Secondary, 250 VA Power, 50/60 Hz Frequency, 1 ph, Screw Connection, Surface Mounting, Open Enclosure, -4 to 104 deg F, 4.47 in H x 4.5 in W x 4.78 in D Dimensions
MT0250G Application
Domestic ApplicationsMT0250G Includes
(2) Jumpers, (1) 50 to 750 VA Secondary Fuse Clip and (1) KCCFPX2R Primary Fuse KitMT0250G Item Features
- Epoxy encapsulated completely seals the transformer coils against moisture, dust, dirt and industrial contaminants for maximum protection in hostile and industrial environments
- Fuse clips factory mounted for integral fusing on the secondary side to save panel space, save wiring time and save the cost of buying an add-on fuse block or kit
- Integrally molded barriers between terminals and transformer, protect against electrical creepage
- Extra-deep barriers reduce the chance of shorts from frayed leads or careless wiring
- Terminals molded into the transformer, are difficult to break during wiring
- Laminations are built with silicon steel to minimize core losses and to increase optimum performance and efficiency
- Copper magnet wire of the highest quality assures efficient operation
- Mounting brackets are heavy gauge steel to add strength to core construction and provide stable mounting
- Robust design
MT0250G Standards
UL Listed|CSA CertifiedSKU #2342742Part Number #MT0250GUNSPSC39121026UPC00754554027166
