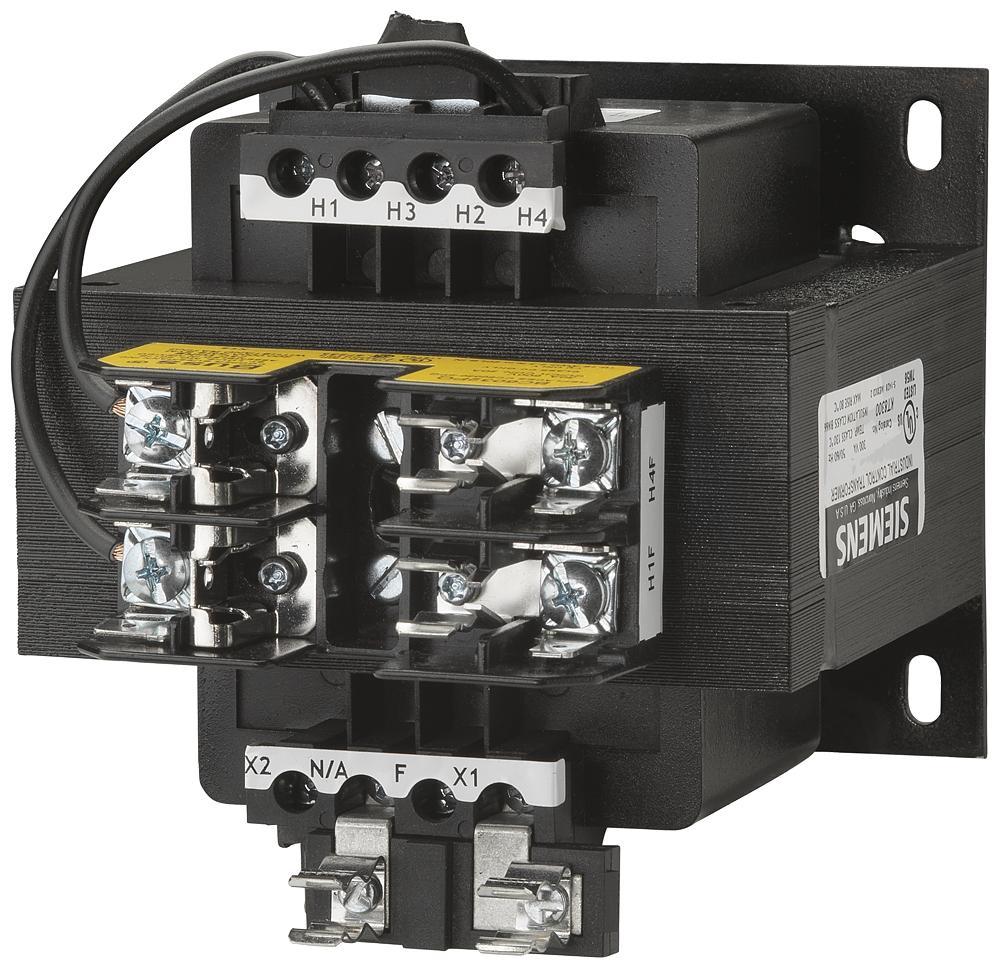

Siemens MT0300M Control Power Transformer
Siemens MT0300M Control Power Transformer
Part #:MT0300M
SKU #: 2326003
Key Features
Part #:MT0300M
SKU #: 2326003
Brand: Siemens
Dimensions: 4.04 in H x 4.5 in W x 4.64 in D
Enclosure Type: Open
Frequency Rating: 50/60, 50/60 Hz
Insulation: Class 130 deg C
Phase: 1
- Enclosed coils, completely encloses the transformer coils against moisture, dust, dirt and industrial contaminants for maximum protection in hostile and industrial environments
- Fuse clips, factory mounted for integral fusing on the secondary side to save panel space, save wiring time and save the cost of buying an add on fuse block or kit
- Integrally finger-safe terminals, between terminals and transformer, protect against electrical creepage
- Up to 30% greater terminal contact area permits low loss connections
- Extra deep barriers reduce the chance of shorts from frayed leads or careless wiring
- Terminals molded into the transformer are difficult to break during wiring
- A full quarter-inch of thread on the 8-32 terminal screws prevents stripping and pullout
- Jumpers supplied, two jumper links are standard with all transformers which can be wired for dual primary voltages
Siemens MT0300M Control Power Transformer
Siemens Control Power Transformer, Class MT, 240 x 480 VAC Primary, 120 x 240 VAC Secondary, 300 VA Power, 50/60 Hz Frequency, 1 ph, Power Factor: 20 %, Screw Terminal Connection, Surface Mounting, Class 130 deg C Insulation, Open Enclosure, -4 to 104 deg F, 4.04 in H x 4.5 in W x 4.64 in D Dimensions
Additional Description: SIEM-MT0300M TRANSFORMER,CNTRL, 300VA,240/480-120/240
Catalog Description: Control Power Transformer, 300va, PRI 240x480v, SEC 120x240v, Domestic
