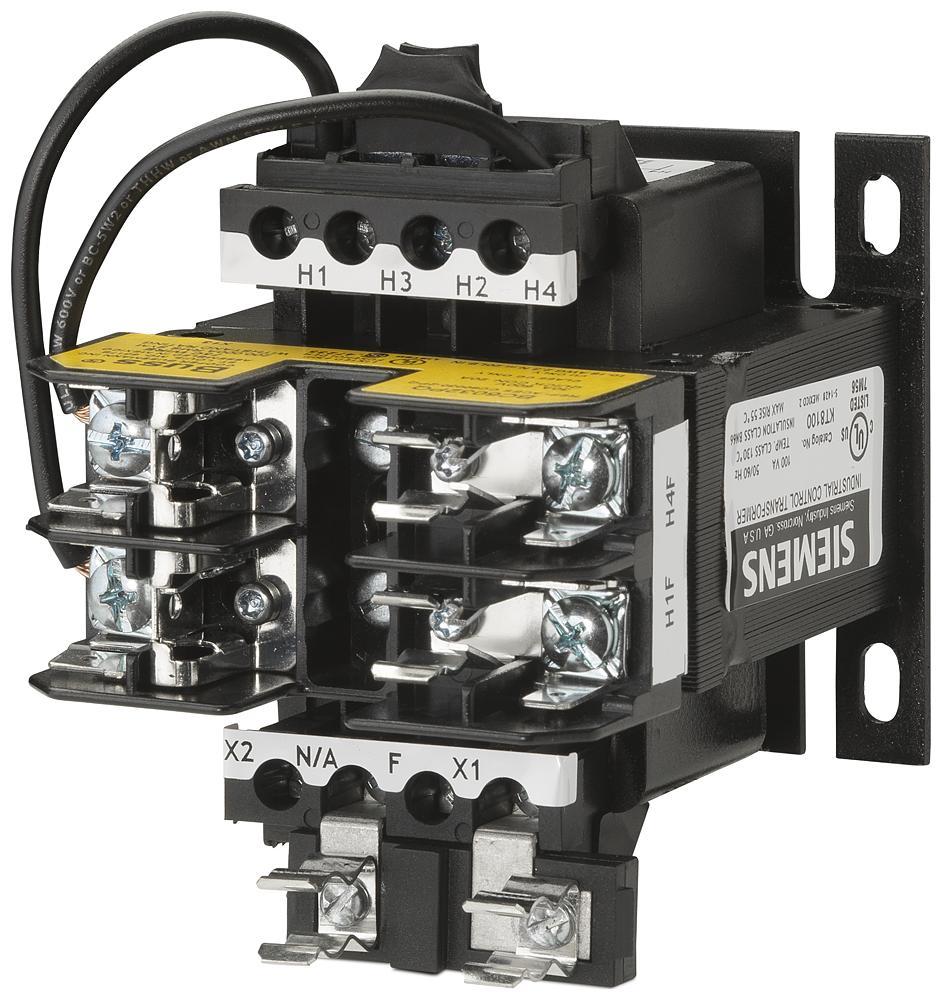

Siemens MTG0100P Control Power Transformer
Part Number # MTG0100P
SKU # 2207440
$164.39 / Each
Typical price:$311.00 / Each
Siemens MTG0100P Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | MTG0100P |
| SKU #: | 2207440 |
| Dimensions: | 2.78 in H x 3.31 in W x 3.71 in D |
| Enclosure Type: | Open |
| Frequency Rating: | 50/60, 50/60 Hz |
| Insulation: | Class 130 deg C |
| Phase: | 1 |
| Primary Voltage: | 380, 380 V AC, 380 VAC |
| Secondary Voltage: | 24, 24 V AC, 24 VAC |
| Temperature Rating (Degrees F): | -4 to 104, -4 to 104 deg F |
| Type: | Class MTG |
| Connection type: | Screw Terminal |
| Country of origin: | MX |
| Mounting type: | Surface |
| Power factor: | 20, 20 %, 20% |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121026 |
| UPC: | 00754554315218 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$164.39 / Each
Typical price:$311.00 / Each
Quantity:
- Siemens Control Power Transformer, Class MTG, 380 V AC Primary, 24 VAC Secondary, 100 VA Power, 50/60 Hz Frequency, 1 ph, Power Factor: 20 %, Screw Terminal Connection, Surface Mounting, Class 130 deg C Insulation, Open Enclosure, -4 to 104 deg F, 2.78 in H x 3.31 in W x 3.71 in D Dimensions
MTG0100P Application
Domestic and International ApplicationsMTG0100P Item Features
- Meets IP-20 specifications per IEC 529 for finger-safe protection when used with Siemens touch safe snap-on terminal cover kits
- Meets IP-00 specifications when covers are not used
- Insulation requirements is twice that of UL 5085
- Integrally molded terminals and barriers between terminals make breakage virtually impossible during wiring
- The MTG transformer construction is the same as our high quality class MT transformers
MTG0100P Standards
UL Listed|cUL Listed|ANSI Specified|CE Certified|CSA Certified|IEC/EN 61 558SKU #2207440Part Number #MTG0100PUNSPSC39121026UPC00754554315218
