- Meets IP-20 specifications per IEC 529 for finger-safe protection when used with Siemens touch safe snap-on terminal cover kits
- Meets IP-00 specifications when covers are not used
- Insulation requirements is twice that of UL 5085
- Integrally molded terminals and barriers between terminals make breakage virtually impossible during wiring
- The MTG transformer construction is the same as our high quality class MT transformers
Specifications
Brand: Siemens
Dimensions: 3.82 in H x 4.5 in W x 5.28 in D
Enclosure Type: Open
Frequency Rating: 50/60, 50/60 Hz
Insulation: Class 130 deg C
Phase: 1
Power Rating: 350, 350 VA
Primary Voltage: 380/400/415, 380/400/415 VAC
Secondary Voltage: 110 x 220, 110 x 220 VAC
Temperature Rating (Degrees F): -4 to 104, -4 to 104 deg F
Type: Class MTG
Connection type: Screw Terminal
Country of origin: MX
Mounting type: Surface
Power factor: 20, 20 %, 20%
Manufacturer Name: Siemens
UNSPSC: 39121026
UPC: 00754554289977

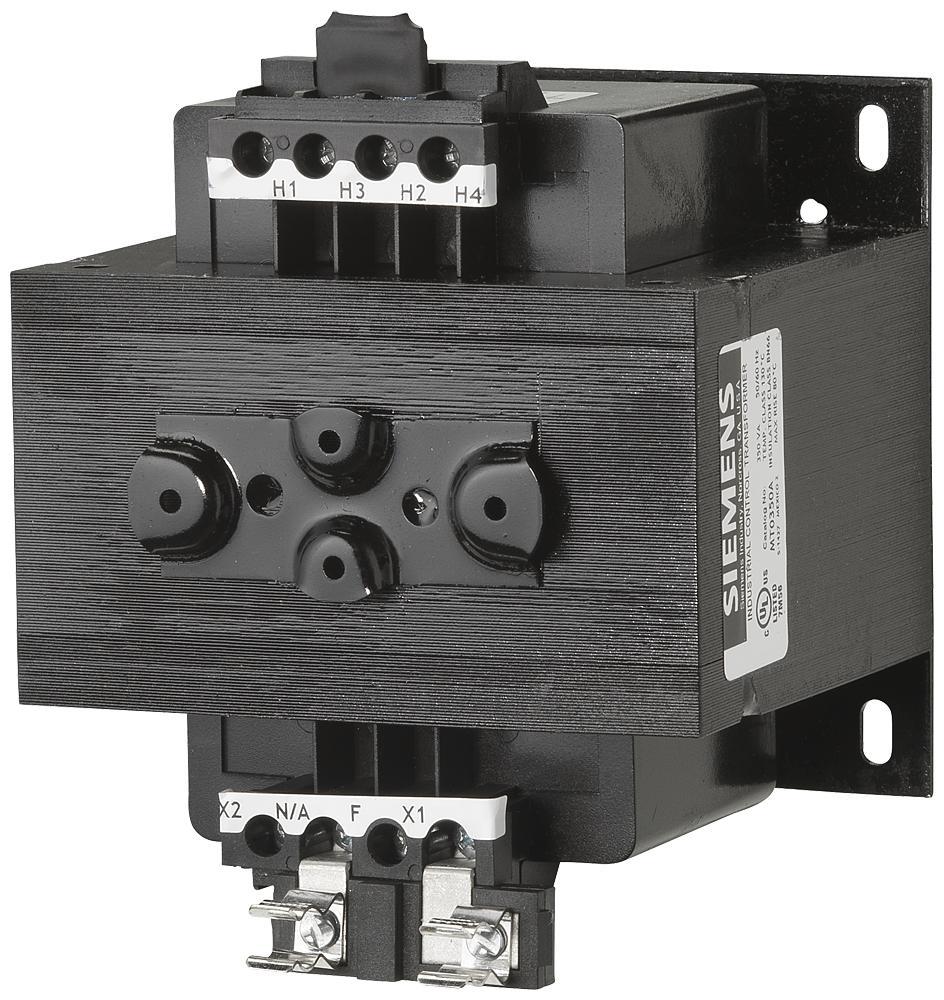

Siemens MTG0350I Control Power Transformer
Siemens Control Power Transformer, Class MTG, 380/400/415 VAC Primary, 110 x 220 VAC Secondary, 350 VA Power, 50/60 Hz Frequency, 1 ph, Power Factor: 20 %, Screw Terminal Connection, Surface Mounting, Class 130 deg C Insulation, Open Enclosure, -4 to 104 deg F, 3.82 in H x 4.5 in W x 5.28 in D Dimensions
Additional Description: SIEM-MTG0350I CONTROL TRANSFORMER,350VA,380/400/415-11
Catalog Description: Control Power Transformer, 350va, PRI 380/400/415v, SEC 110x220v, International
Item FeaturesDomestic and International Applications
Item Features
Item FeaturesUL Listed|cUL Listed|ANSI Specified|CE Certified|CSA Certified|IEC/EN 61 558
