Part Number # NNX3B120
SKU # 2206212
NNX3B120

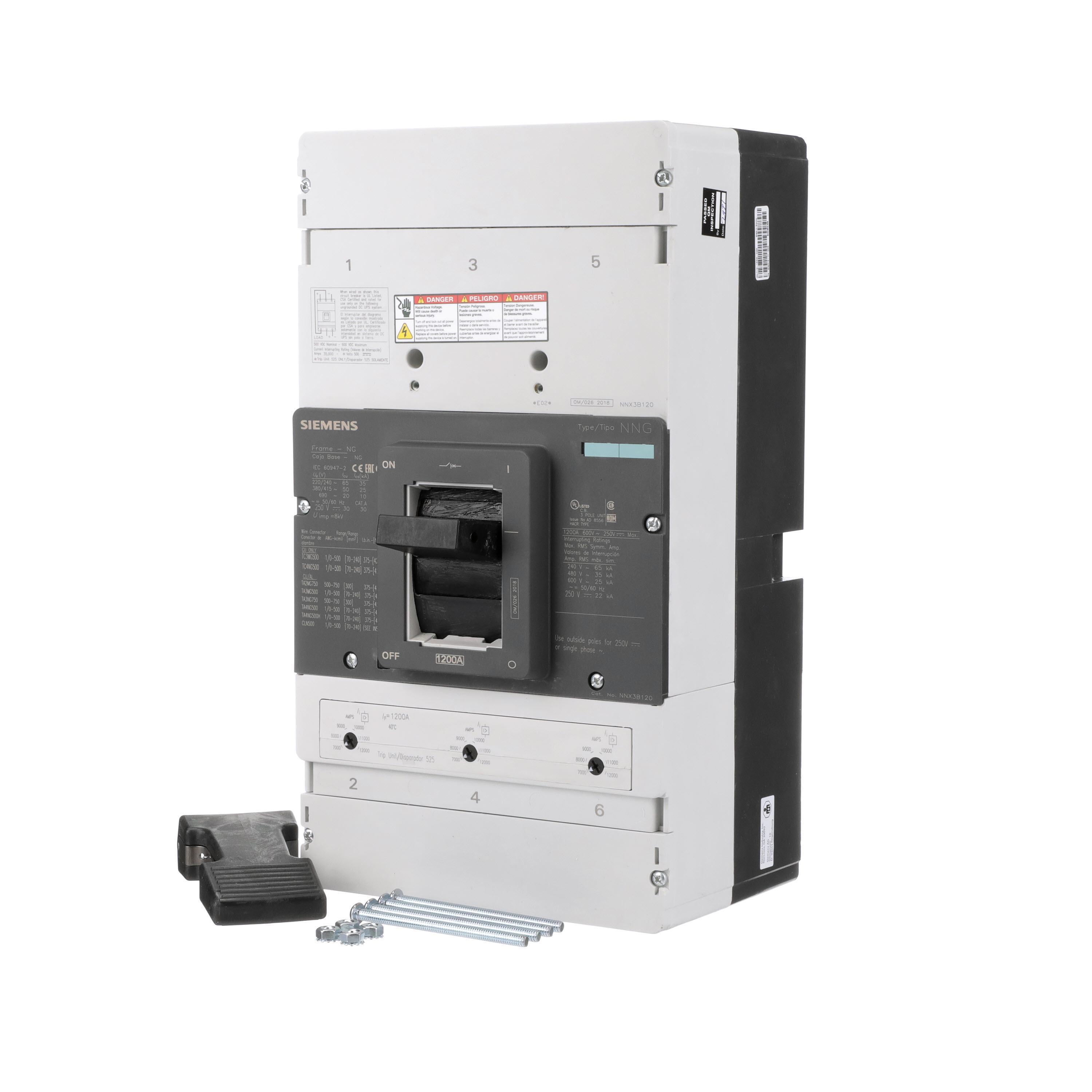

Siemens NNX3B120 Molded Case Circuit Breaker
Part Number # NNX3B120
SKU # 2206212
$43323.99 / Each
Typical price:$63819.00 / Each
Siemens NNX3B120 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | NNX3B120 |
| SKU #: | 2206212 |
| Amperage Rating: | 1200 A |
| Dimensions: | 16 in H x 9 in W x 6.2 in D |
| Enclosure Type: | IP20 |
| Frame: | NG |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 35 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Series: | VL Series |
| Temperature Rating (Degrees F): | 40 deg C |
| Trip Type: | Thermal Magnetic |
| Type: | Low Voltage |
| Country of origin: | MX |
| Mounting type: | Bolted-On |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00783643498266 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$43323.99 / Each
Typical price:$63819.00 / Each
Quantity:
- Siemens, NNX3B120, Molded Case Circuit Breaker, Low Voltage, Series: VL Series, 480 V AC, 1200 A, 50/60 Hz Frequency, 35 kA Interrupt, NG Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, IP20 Enclosure, Bolted-On Mounting, 40 deg C, 16 in H x 9 in W x 6.2 in D Dimensions
NNX3B120 Item Features
- High reliability most VL components are tested to twice the endurance specified by UL
- The modularity of the VL allows for last minute adaptation, forgives changes in system design and reduces inventory
- NNG frame with normal breaking capacity
- Communication is possible over PROFIBUS DP or MODBUS RTU with electronic trip units
- The molded case circuit breakers feature a compact design, are distinguished by improved technology and are easy to operate
- Global non-interchangeable
- VL breakers are designed for global use, allowing the user to serve virtually every market using one design and footprint, all VL breakers are HACR rated
- A wide variety of protection options, ampere ratings as well as a full basket of available accessories ensure that Siemens has the product to suit your needs
- Most VL breakers are also available with 100% ratings
- Compact size reduced dimensions save panel space, which can reduce the overall system design requirements and therefore material costs
- Without auxiliary release
- 3VL molded case circuit breakers according to UL 489 optimally fulfill the high demands prevalent in modern power distribution
NNX3B120 Standards
ECCN: EAR99|WEEE|RoHS Compliant|UL 489|UL Listed|C-TICK|RMRS CertifiedSKU #2206212Part Number #NNX3B120UNSPSC39121601UPC00783643498266
Image provided may only be a representation of final product and may include optional equipment
