Part Number # Q260
SKU # 20256
Q260

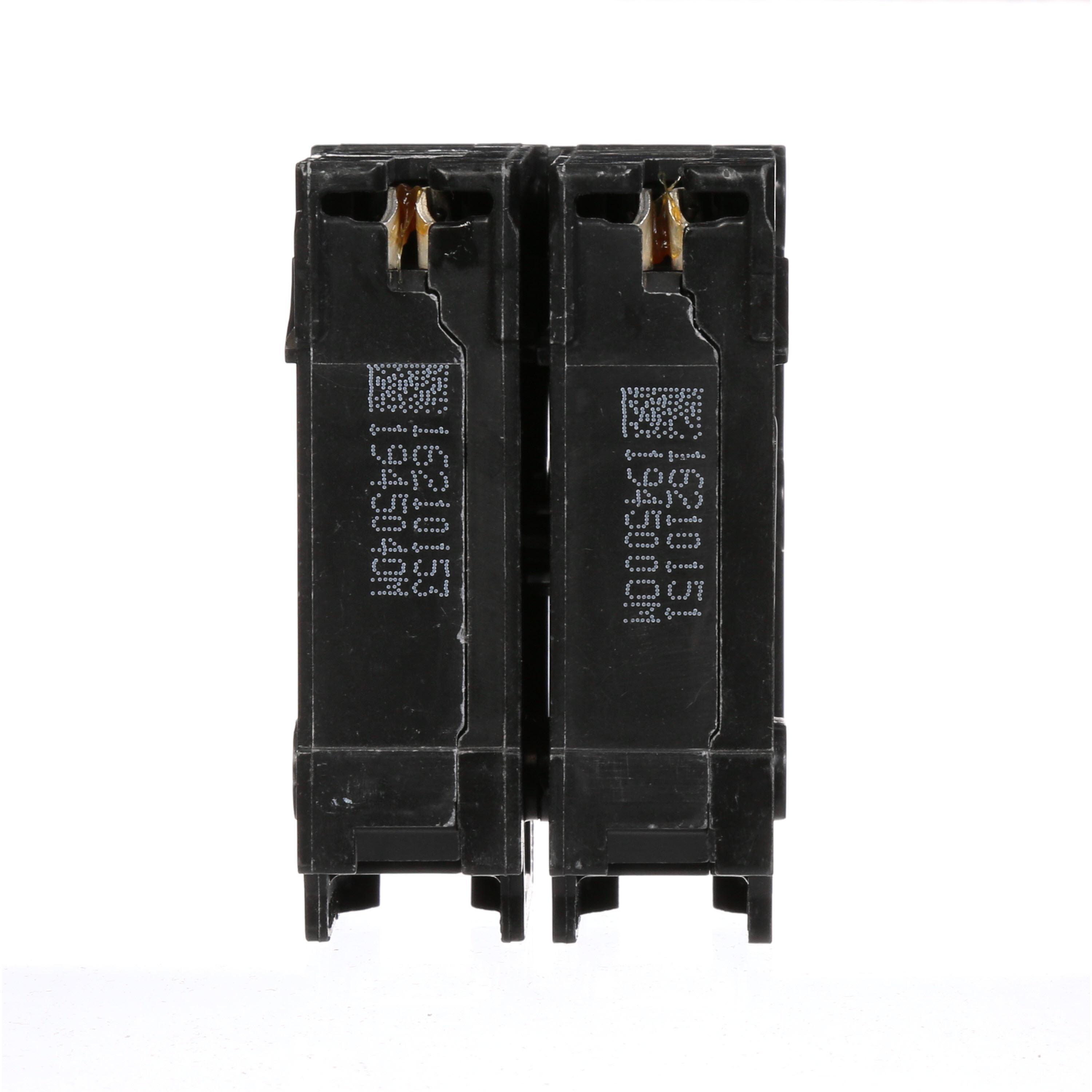

Siemens Q260 Molded Case Circuit Breaker
Part Number # Q260
SKU # 20256
Siemens Q260 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | Q260 |
| SKU #: | 20256 |
| Amperage Rating: | 60 A |
| Dimensions: | 3 in L x 3 in W x 2 in H |
| Enclosure Type: | NEMA 1/3R |
| Frame: | 2 in |
| Frequency Rating: | 60, 60 Hz |
| Interrupt Rating: | 10, 10 kA |
| Number of Poles: | 2 |
| Phase: | 1 |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Trip Type: | LI/Thermal Magnetic, Thermal Magnetic |
| Type: | Type QP, Type QP/MP Low Voltage Miniature |
| Wire Size: | 8 to 2/0, 8 to 2/0 AWG |
| Connection type: | Load Lug/Plug-In |
| Country of origin: | MX |
| Mounting type: | Plug-In |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00783643148659 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens Q260 Molded Case Circuit Breaker
Brand: Siemens
Part Number: Q260
Siemens Miniature Circuit Breaker, Type QP, 120/240 VAC, 60 A, 10 kA Interrupt, 2 in Frame, 2 Pole, 1 ph, Plug-In Mounting, 40 deg C
Additional Description: SIEM-Q260 BREAKER 60A 2P 120/240V 10KA QP
Catalog Description: Siemens Low Voltage Residential Circuit Breakers Miniature Thermal Mag Circuit Breakers - Type QP/MP, 2-Pole, 120/240VAC are Circuit Protection Load Center Mains, Feeders, and Miniature Circuit Breakers. Type QP/MP Application Electrical Distribution Standard UL 489 Voltage Rating 120/240V Amperage Rating 60A Trip Range Thermal Magnetic Interrupt Rating 10 AIC Number Of Poles 2P
Q260 Application
Electrical Distribution and Residential ApplicationsQ260 Item Features
- Circuit breaker offers long time instantaneous functions to perform efficiently
- Load lug side terminal
- It is ideal to use in air conditioning, heating, refrigeration and distribution applications
- 8 to 2/0 AWG copper aluminum wire range
- Senses when an overcurrent occurs
- Measure the amount of overcurrent
- ACT by tripping quickly enough to prevent damage to itself and associated conductors
- Siemens QP breakers provide easy plug-in connections in Siemens enclosures and the time saving insta-wire feature
- https://digitalcontentcenter.compas.siemens-info.com/SIE_VI_Dual_Function.mp4
Q260 Standards
ULLISTED/CSA/NOMCERTIFIEDSKU #20256Part Number #Q260UNSPSC39121601UPC00783643148659
Image provided may only be a representation of final product and may include optional equipment
