Part Number # Q37000S01
SKU # 2341804
Q37000S01
Siemens Q37000S01 Molded Case Circuit Breaker
Part Number # Q37000S01
SKU # 2341804
Siemens Q37000S01 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | Q37000S01 |
| SKU #: | 2341804 |
| Amperage Rating: | 70, 70 A |
| Dimensions: | 3 in L x 4 in W x 3.12 in H |
| Enclosure Type: | NEMA 1/3R |
| Frame: | QP/MP |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 10, 10 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Low Voltage Miniature |
| Wire Size: | 8 to 4 AWG, 8 to 2 AWG |
| Connection type: | Lug-In/Lug-Out/Bolt-On/Plug-In |
| Country of origin: | MX |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121601 |
| UPC: | 00783643237667 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens Q37000S01 Molded Case Circuit Breaker
Brand: Siemens
Part Number: Q37000S01
Siemens Molded Case Circuit Breaker, Low Voltage Miniature, 120/240 VAC, 70 A, 50/60 Hz Frequency, 10 kA Interrupt, QP/MP Frame, Thermal/Magnetic Trip, 3 Pole, 3 ph, Lug-In/Lug-Out/Bolt-On/Plug-In Connection, 8 to 4 AWG, 8 to 2 AWG Wire, NEMA 1/3R Enclosure, 40 deg C, 3 in L x 4 in W x 3.12 in H Dimensions
Additional Description: SIEM-Q37000S01 BREAKER 70A 3P 240V 10K QP 120V SHUNT
Catalog Description: Siemens Low Voltage Residential Circuit Breakers Miniature Thermal Mag Circuit Breakers - Type QP/MP, 3-Pole, 240VAC are Circuit Protection Load Center Mains, Feeders, and Miniature Circuit Breakers. Type QP/MP Special Features Shunt Trip 120V Application Electrical Distribution Standard UL 489 Voltage Rating 120/240VAmperage Rating 70A Trip Range Thermal Magnetic Interrupt Rating 10 AIC Number Of Poles 3P
Q37000S01 Application
Electrical Distribution and Residential ApplicationsQ37000S01 Item Features
- Circuit breaker offers long time instantaneous functions to perform efficiently
- It is ideal to use in Siemens loadcenters an interrupt current conditioning, heating, refrigeration and distribution applications
- 8 to 2/0 AWG copper aluminum wire range
- 120 VAC shunt trip
Q37000S01 Standards
ULLISTED/CSA/NOMCERTIFIEDSKU #2341804Part Number #Q37000S01UNSPSC39121601UPC00783643237667

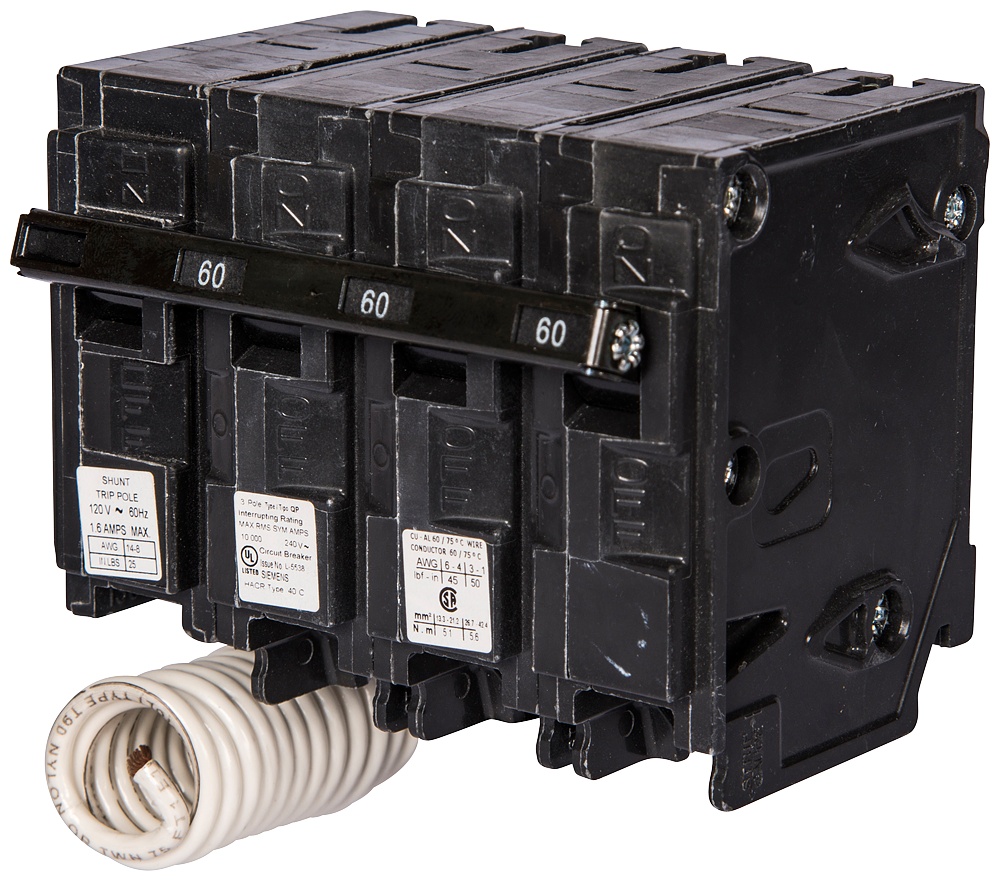

Image provided may only be a representation of final product and may include optional equipment
